Shadow D-METER-2 Plus Multi OBD2 Display Gauge

D-Meter 2 PLUS OBDII Multifunction Display

Enhance Your Driving Vision

Experience next-level vehicle monitoring with the D-Meter 2 PLUS OBDII Multifunction Display — a sleek, plug-and-play device that instantly connects to your vehicle’s ECU via OBDII, requiring no extra sensors.

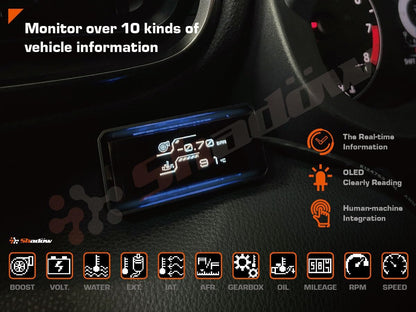

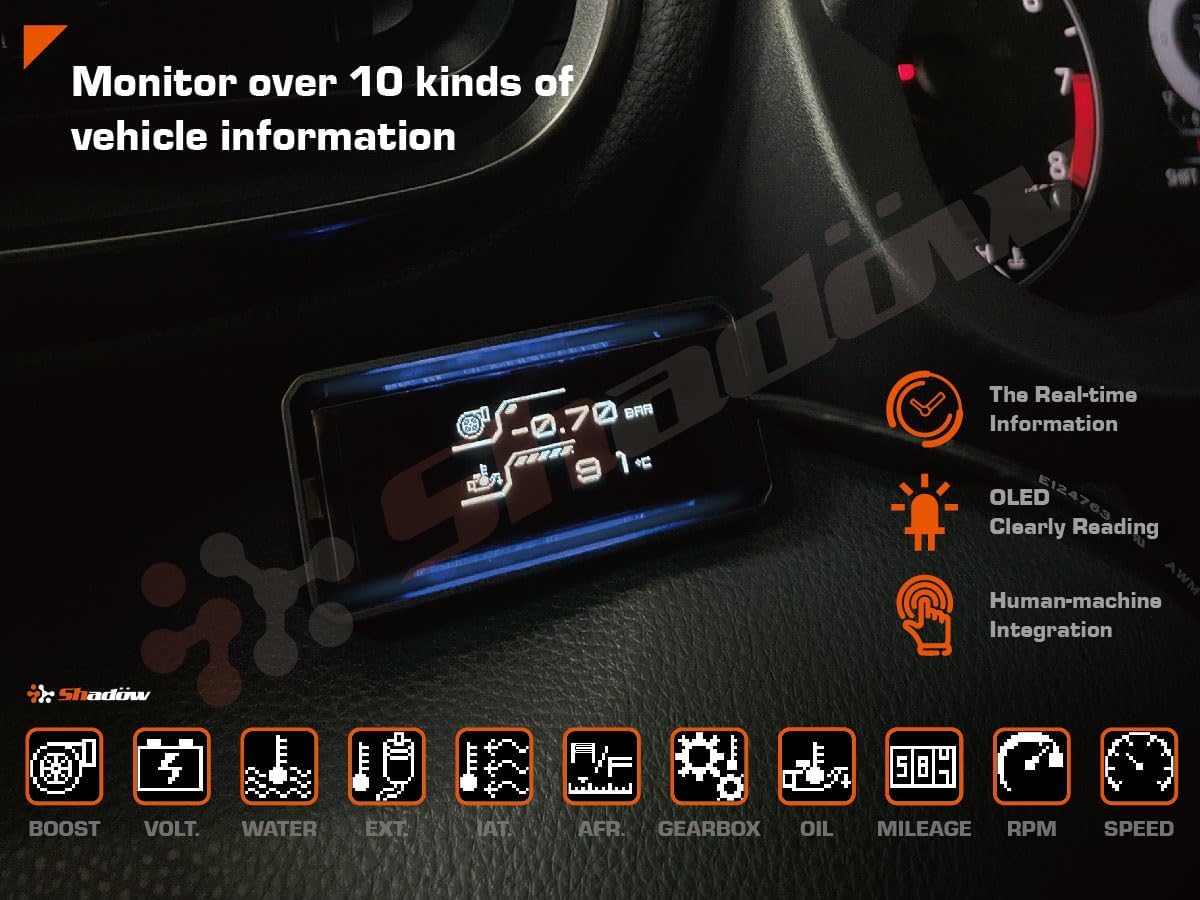

With its real-time data display and optimized digital interface, the D-Meter 2 PLUS gives you instant access to 11 key performance metrics, including:

• Turbo/Boost Pressure
• Air-Fuel Ratio
• Engine Oil Temperature
• Transmission Fluid Temperature
• RPM
• Voltage
• Coolant Temperature
  …and more.

Smarter, Faster, and More Accurate

Now upgraded to its second-generation model, the D-Meter 2 PLUS features a Microchip CPU for lightning-fast processing and ultra-precise data feedback. You’ll get seamless real-time performance insights to enhance your driving safety and awareness.

Key Features

• Plug & Play Installation – Simply connect to your vehicle’s OBDII port.
• Advanced Microchip CPU – Delivers faster and more accurate data processing.
• Real-Time Monitoring – Track 11 essential vehicle parameters instantly.
• Integrated DTC Reading – Quickly view and clear diagnostic trouble codes.
• Optimized Display Interface – Crisp, intuitive design for maximum visibility.
• No Additional Sensors Required – Retrieves data directly from your vehicle’s ECU via OBDII CANBUS communication.

Stay in control. Drive smarter. See more with the D-Meter 2 PLUS.

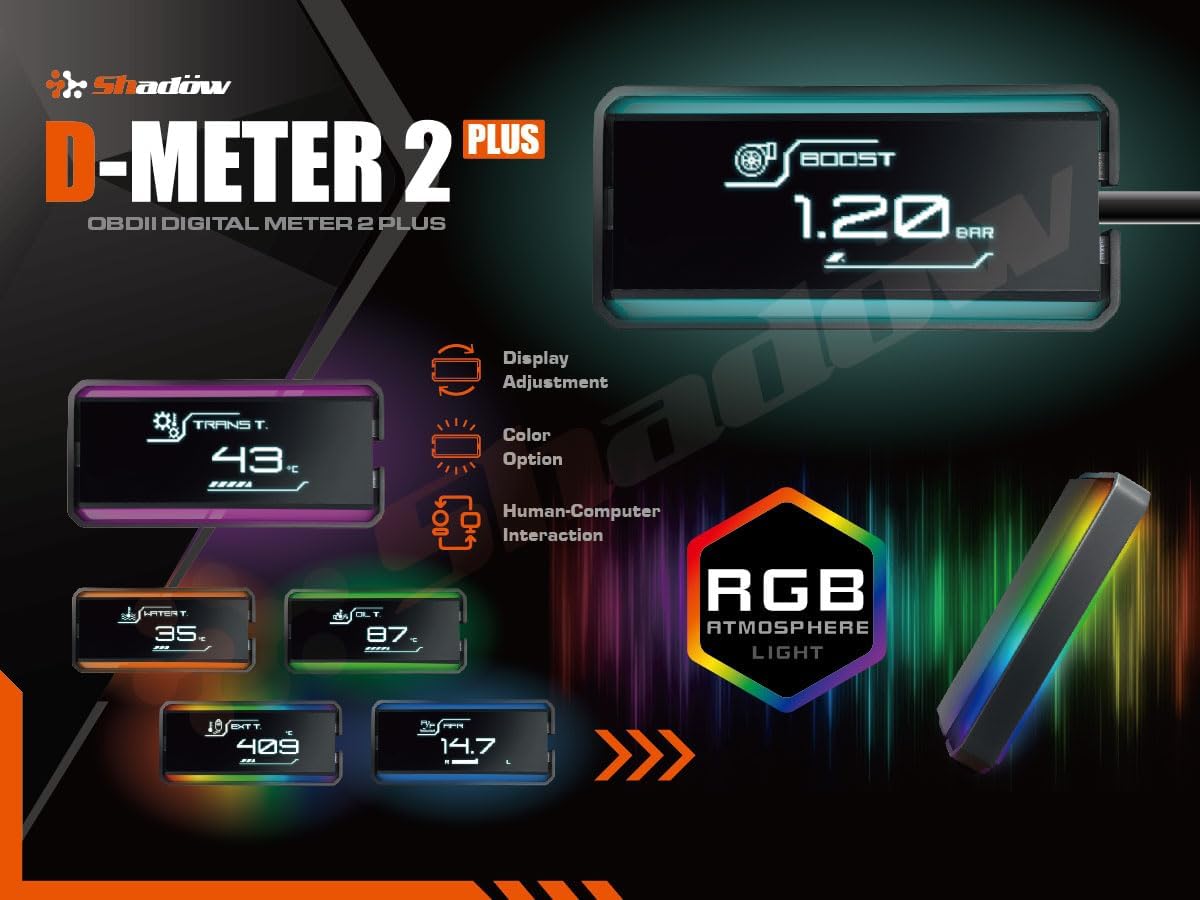

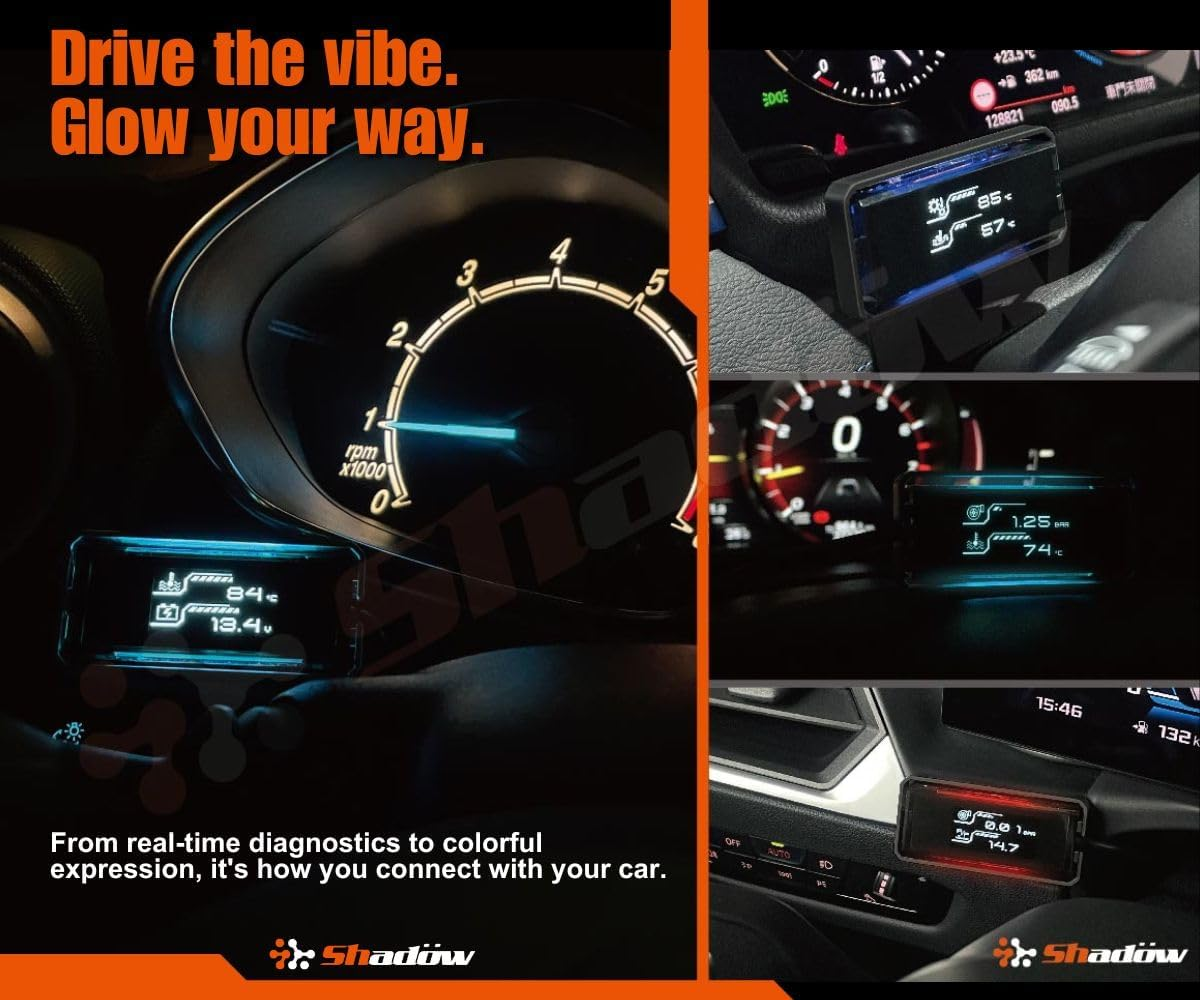

Crafted with a matte black aluminum bezel, the unit features an embedded multicolor RGB ambient backlight. It supports multiple color modes and five levels of brightness adjustment, allowing seamless integration with any interior style. The screen and backlight operate in sync, creating a unified, high-quality visual experience that showcases both personal taste and a futuristic aesthetic.

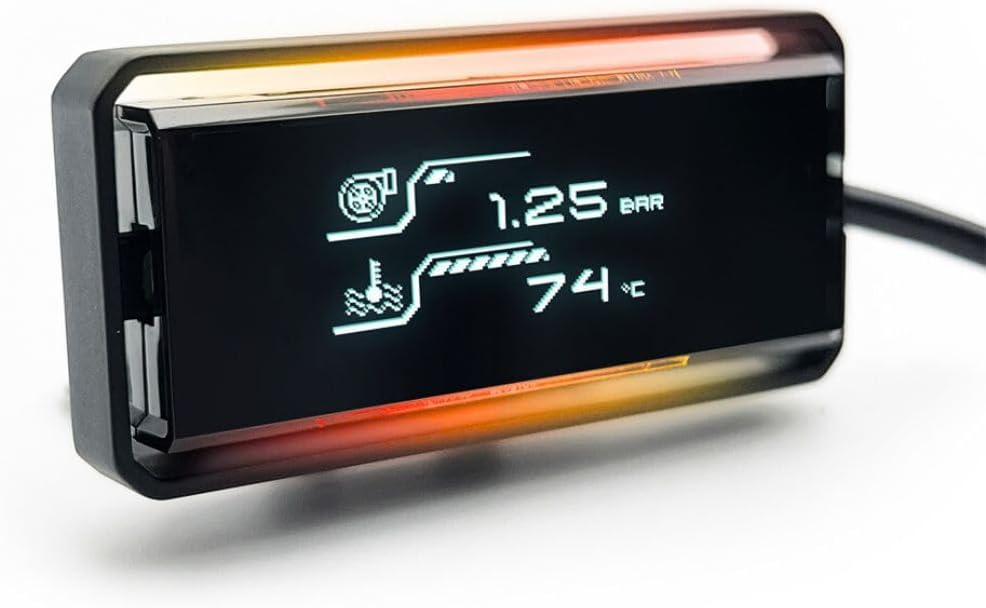

The D-METER 2 PLUS is equipped with a high-contrast OLED screen that remains clearly visible even under direct sunlight, minimizing environmental interference and enhancing readability. The updated font design, paired with evenly spaced dual-display zones, ensures critical information stays easy to read—even during bumpy rides or backlit conditions.

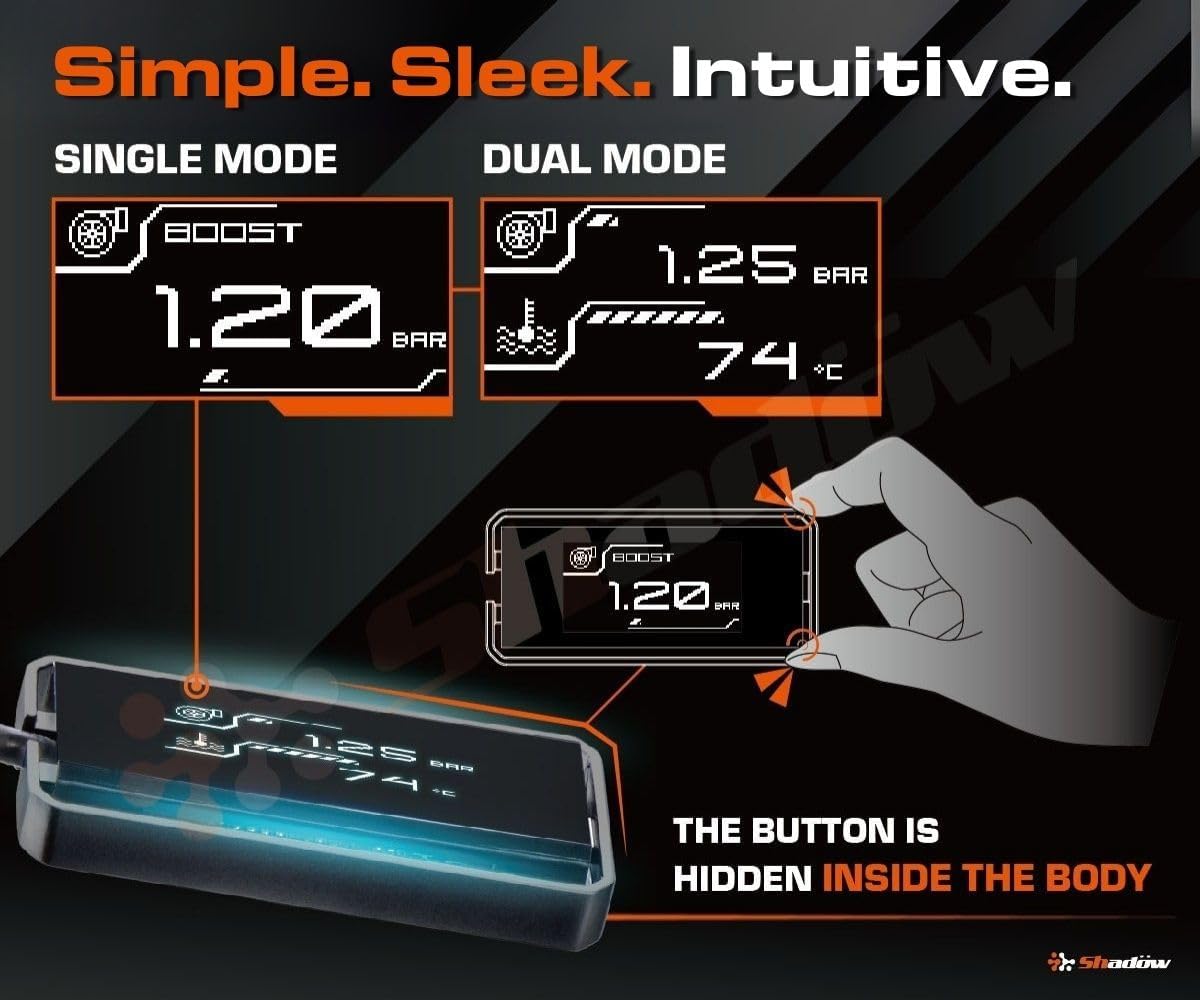

The button features a hidden design for a clean and intuitive user experience. It supports both single and dual display modes, with screen orientation adjustable for left-hand or right-hand driving configurations—perfectly suited for various cabin layouts and wire concealment needs.

Features

• Works with 12V gasoline, diesel, and mild hybrid vehicles
• Reads 11 key data points including coolant temp, intake temp, and voltage
• Plug-and-play via OBDII connector
• OLED display for clear, high-contrast visibility
• 9 customizable alerts for real-time safety monitoring
• Dual data display supported
• RGB ambient light with 7 colors and 5 brightness levels
• Built-in DTC read & clear function
• Auto power on/off with low power consumption
• Flippable screen for flexible installation

Features

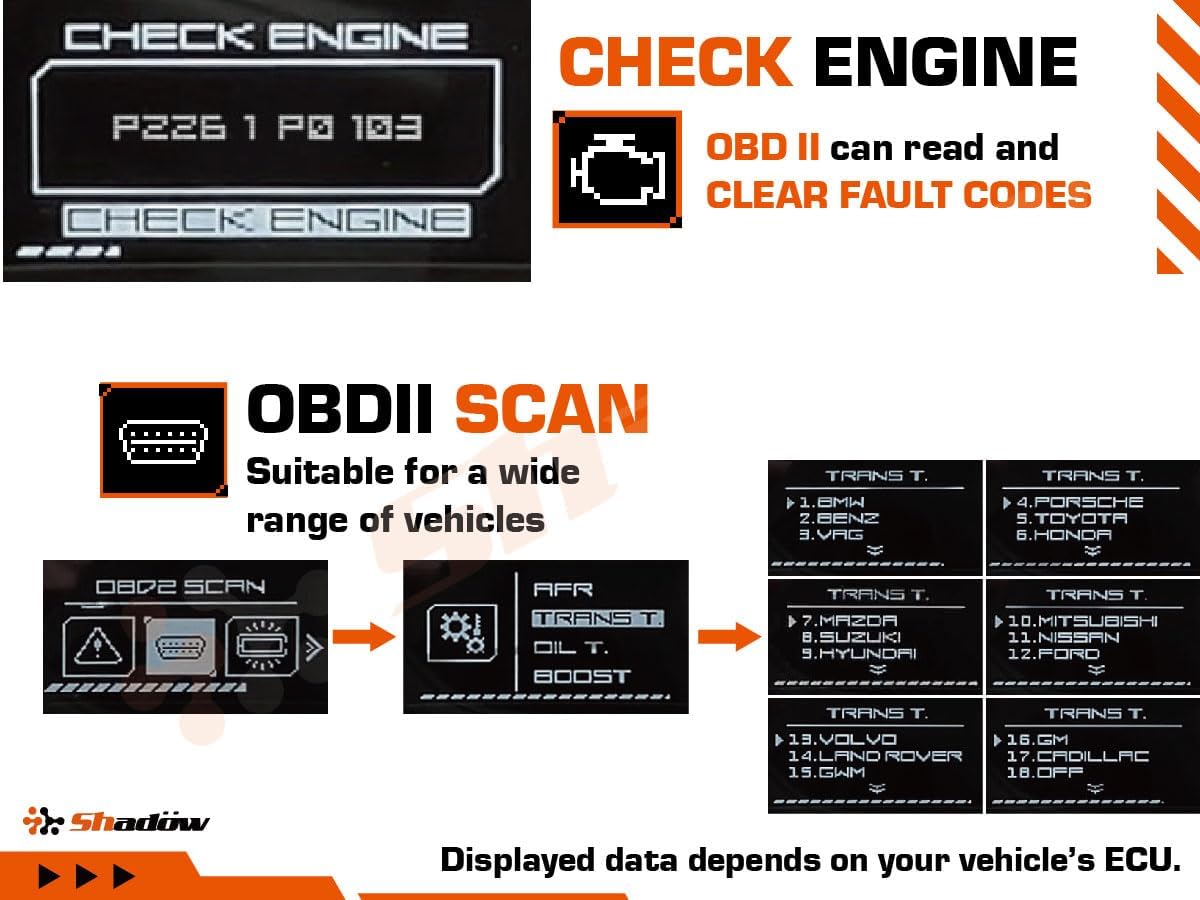

The D-METER 2 PLUS now includes diagnostic trouble code (DTC) read and clear functions, eliminating the need for additional diagnostic tools. It allows you to quickly display and clear ECU error codes, helping drivers instantly detect abnormalities and significantly reduce troubleshooting time.

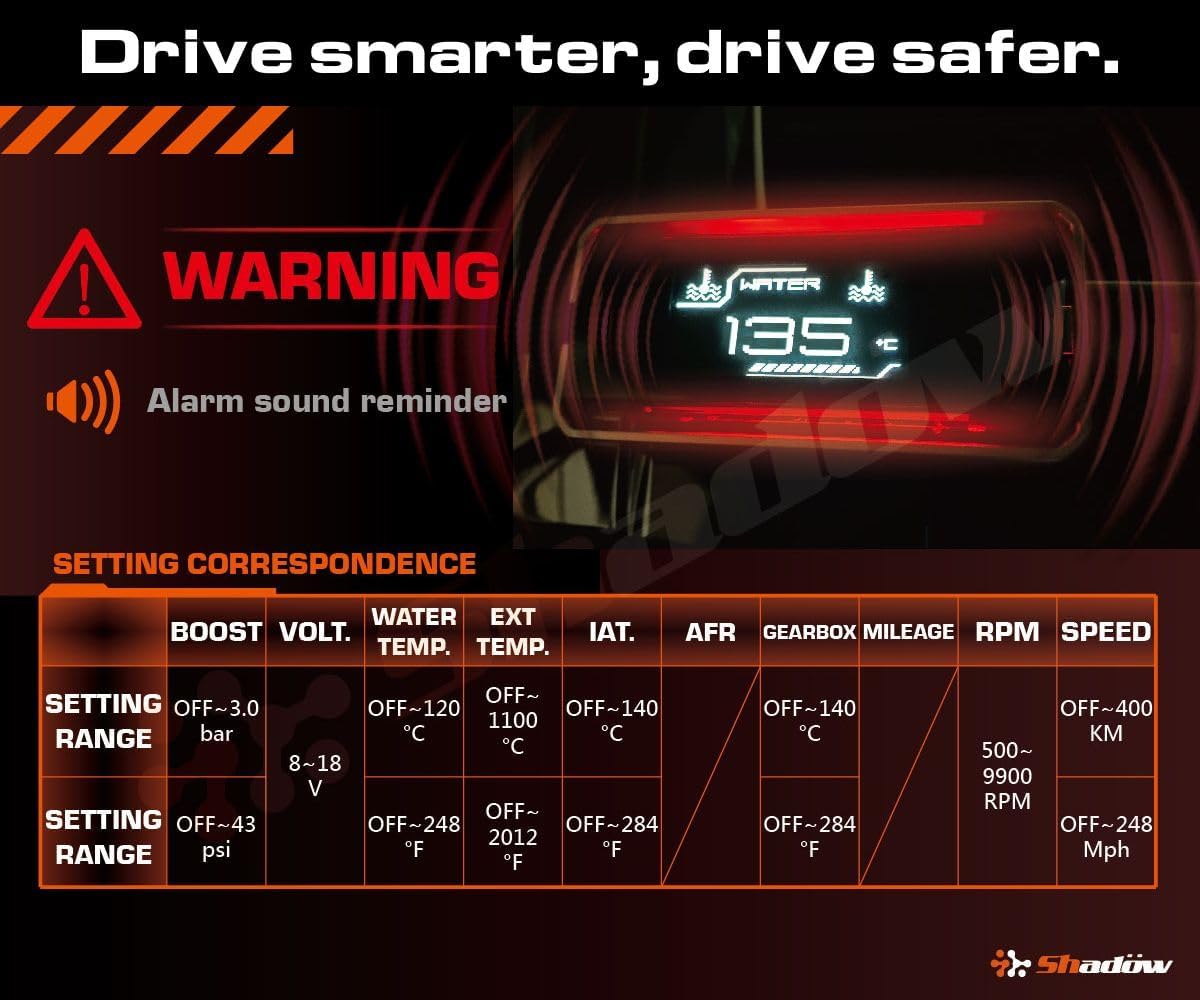

To accommodate various driving preferences and needs, the D-METER 2 PLUS supports unit switching and allows users to set up to 9 customizable alert thresholds. When any monitored value exceeds the preset range, the system will issue a warning through red flashing lights and an audible alert. With a built-in power-off memory function, all user settings are automatically saved—eliminating the need for reconfiguration.

The D-METER 2 PLUS utilizes the OBDII standard CAN BUS protocol, and is compatible with vehicles that support the SAE J1979 communication standard to ensure optimal performance.

Displayed data is dependent on the information provided by the vehicle’s ECU. Availability of data may vary by vehicle model.

To avoid compatibility issues, please confirm that your vehicle meets the required specifications before installation.

In addition to standard OBDII parameters, the D-METER 2 PLUS offers advanced data channel support for specific vehicle brands, enabling the display of manufacturer-specific values such as engine oil temperature, transmission fluid temperature, intake air temperature, and boost pressure. Users can easily apply the corresponding preset based on their vehicle brand.

Supports a wide range of vehicles across European, Asian, American, and emerging brands, including:

European Brands: BMW, BENZ (Mercedes-Benz), VAG (Volkswagen, Audi, Skoda), PORSCHE, MINI, VOLVO, ALFA ROMEO, LAND ROVER

Asian Brands: TOYOTA, LEXUS, HONDA, MAZDA, NISSAN, SUZUKI, MITSUBISHI, HYUNDAI

American Brands: FORD, GM (Holden), CADILLAC, JEEP

Emerging Brands: GWM, Lynk

Engine oil temperature and transmission fluid temperature are not part of the standard OBD-II PID list. Additionally, some vehicles may lack factory-installed sensors for these parameters. As a result, not all vehicles are capable of displaying this data.

- For a detailed list of supported vehicle models, please refer to the FAQ section.

Most vehicles can use the UNIVERSAL Standard Channel CH.1 to directly display boost pressure (intake manifold pressure), with a measurement range from -1.0 bar to +1.55 bar—suitable for the majority of factory turbocharged vehicles.

For certain diesel vehicles and high-boost models, the D-METER 2 PLUS offers brand-specific turbo channels that can measure from 1 atmosphere (0 bar) up to over 2.0 bar, depending on the vehicle’s ECU data output.

For detailed vehicle compatibility, please refer to the FAQ section.

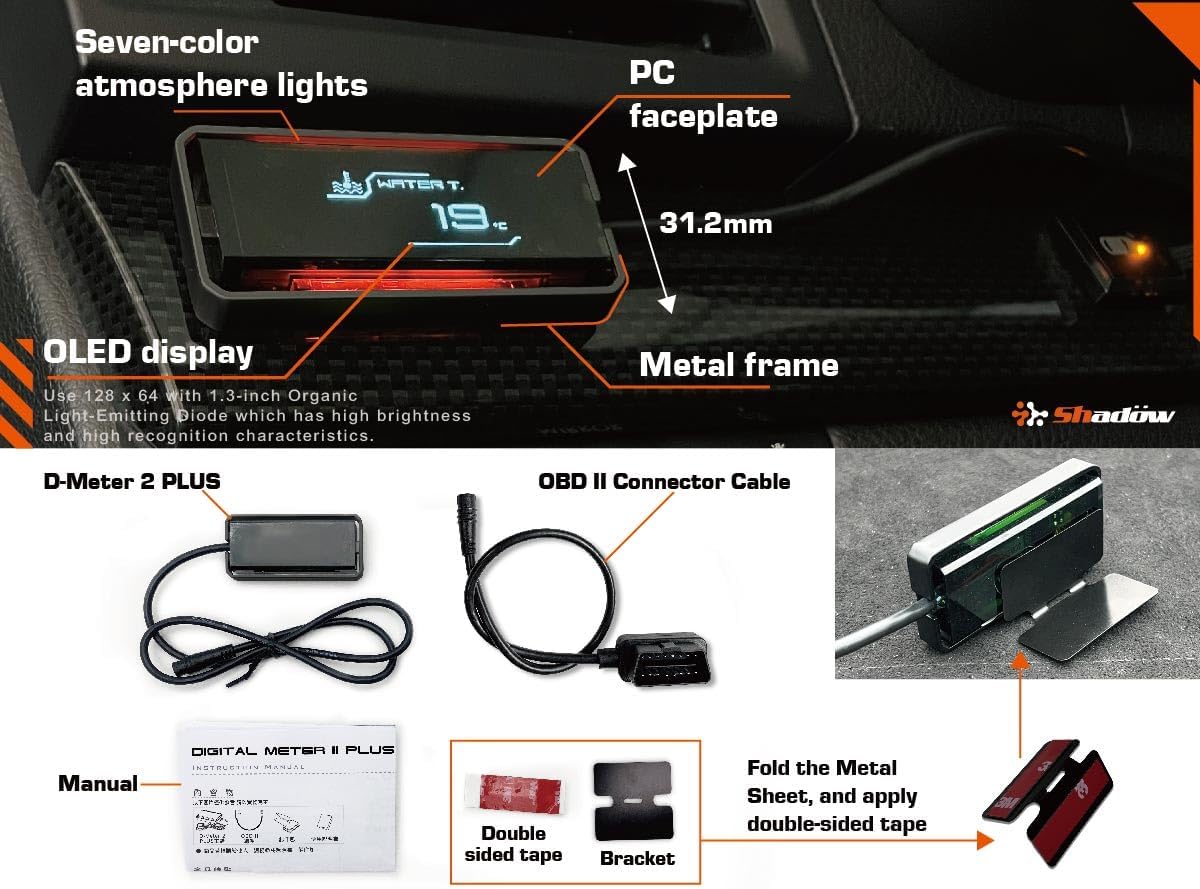

The display can be directly applied to any flat interior surface. If no suitable flat area is available, you can use the included metal plate, bend it into an L-shape, and create a compact mounting bracket.
