Shadow D-METER-2 Multi OBD2 Display Gauge

Shadow D-METER-2 OBD2 Multi-Functional (10-in-1) Diagnostic RGB Display - PSI/BAR, C/F

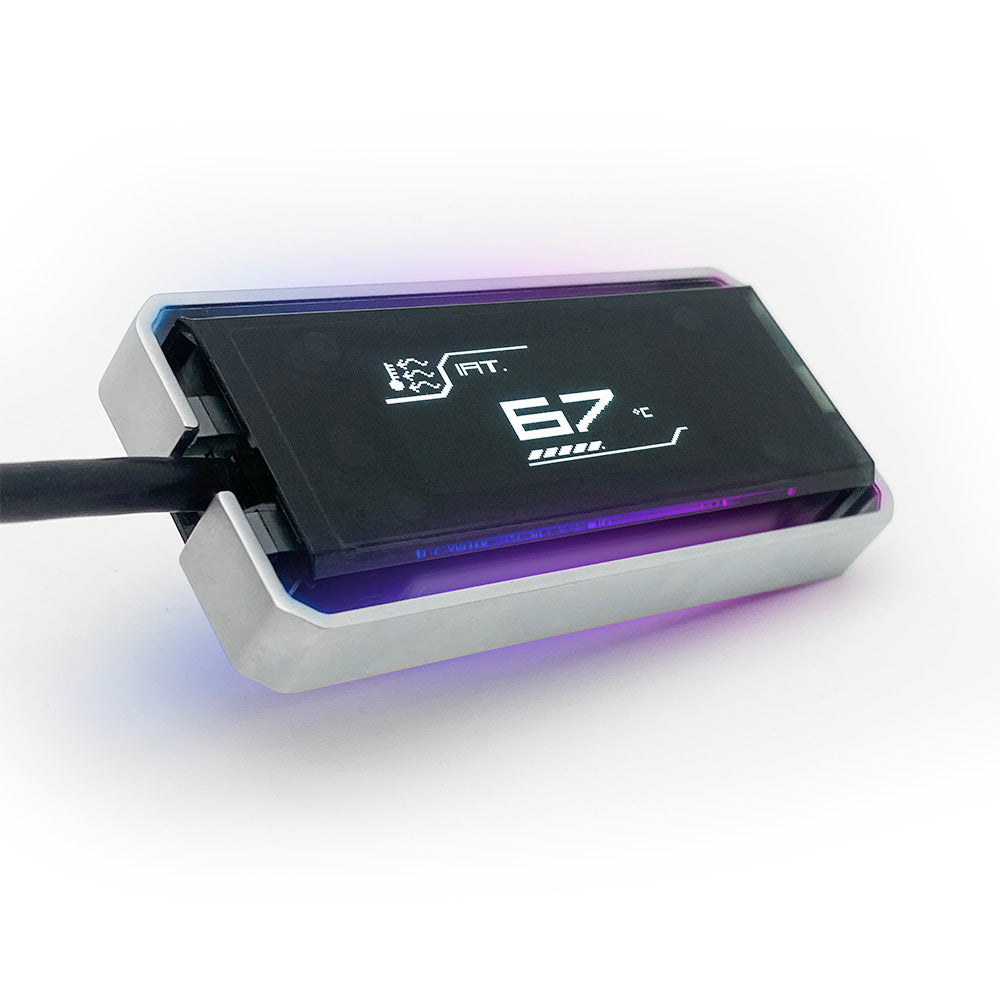

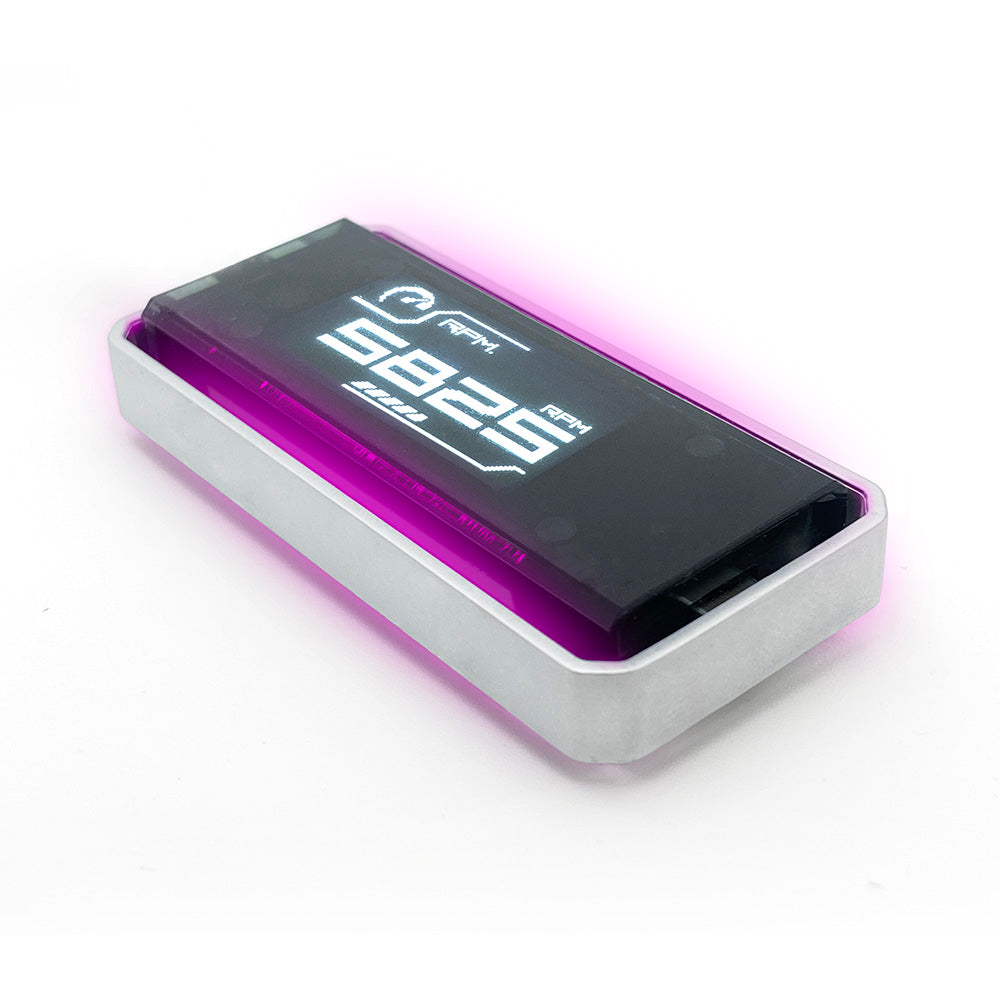

The D-Meter2 OBDII Multifunction Display quickly retrieves data from the vehicle’s ECU (Engine Control Unit) through the local OBDII network—no additional sensors required. With a simple plug-and-play design, it delivers real-time access to 11 essential vehicle metrics, including turbo boost pressure, air-fuel ratio, transmission oil temperature, RPM, voltage, coolant temperature, and more. This allows drivers to monitor their vehicle’s performance and condition with ease.

Now in its second generation, the D-Meter2 features a high-performance Microchip CPU that ensures faster processing speeds and more accurate real-time feedback—greatly enhancing safety and driving confidence.

The D-METER-2 is a new, advanced OBD2 diagnostic multi-functional display that reads up to 10 different sources of vehicle data, including turbo boost, air-fuel ratio, DSG status, speed, voltage, water temperature, and more. Its unique OLED display significantly improves data visibility, offering a clearer, sharper view compared to other displays on the market that still use basic LCD screens. Even in bright sunlight or other challenging conditions, the OLED screen ensures that important engine data is easy to read, providing a superior user experience.

The D-METER-2 also features a discreet, hidden button design that makes operation smooth and intuitive. The product includes optional seven-color ambient lighting with four levels of brightness adjustment. This ambient lighting can also change dynamically based on driving conditions, enhancing the overall driving experience and adding an extra dimension to an already impressive product.

A standout feature of the D-METER-2 is its fully adjustable warning system, which allows you to set alerts for various engine parameters. This provides an added layer of safety by keeping you informed about potential issues in real-time.

Product Specifications:

• Plug & Play Installation: Easy installation via OBD2 port.

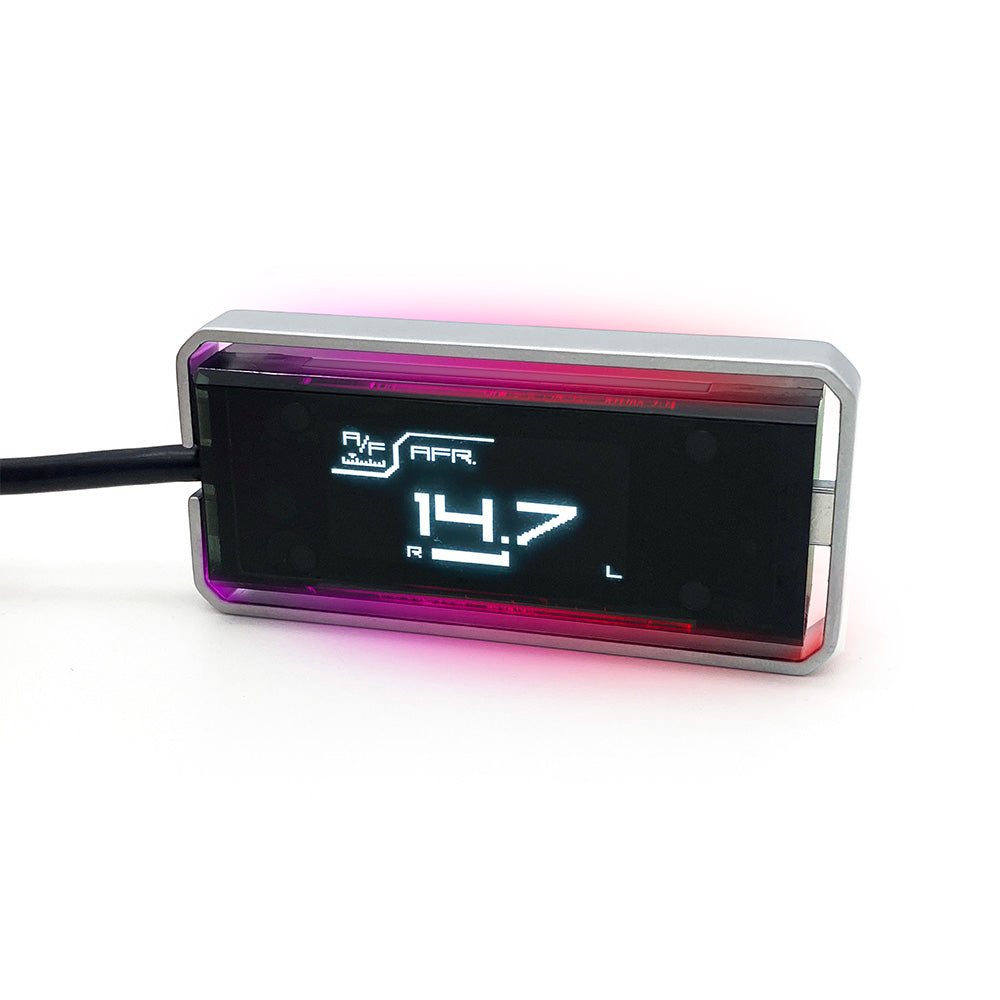

• Unique OLED Display: Enhances data visibility, offering a clear view of critical vehicle information.
• Electronically Rotatable Display: Allows for left- or right-hand mounting.

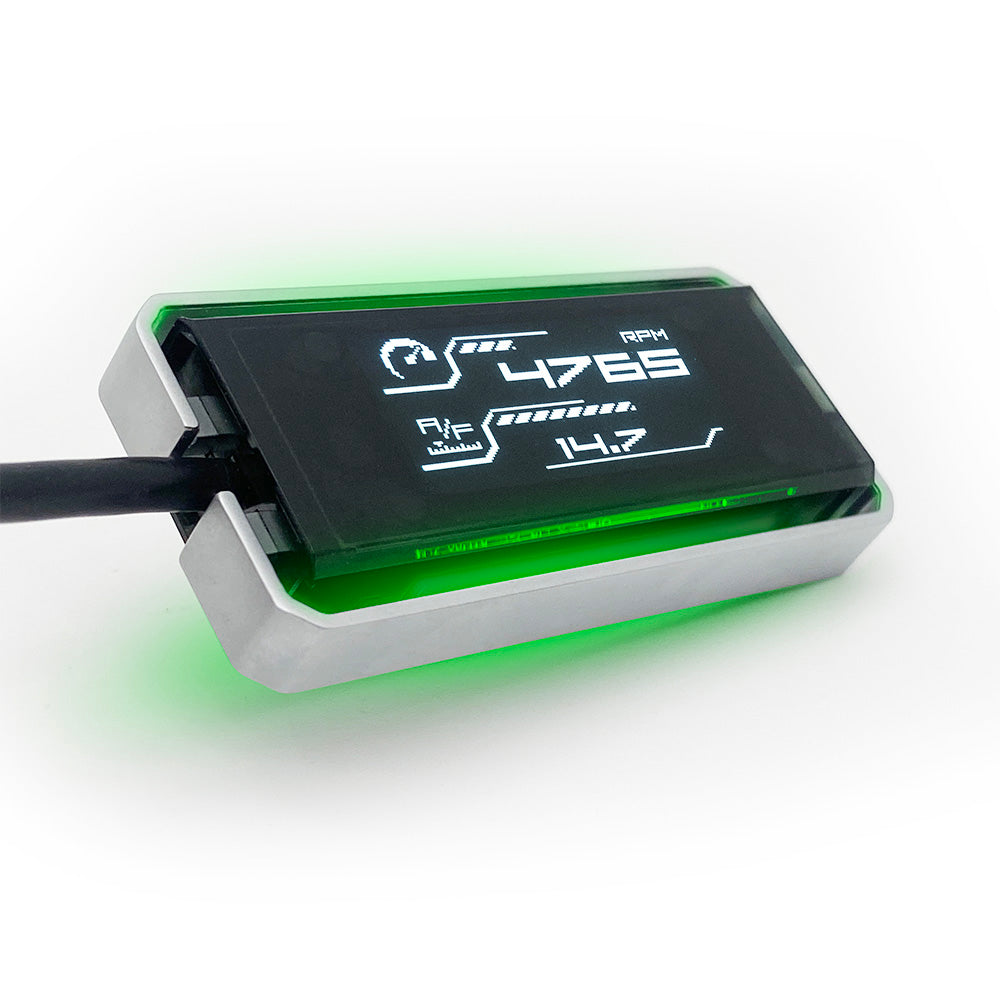

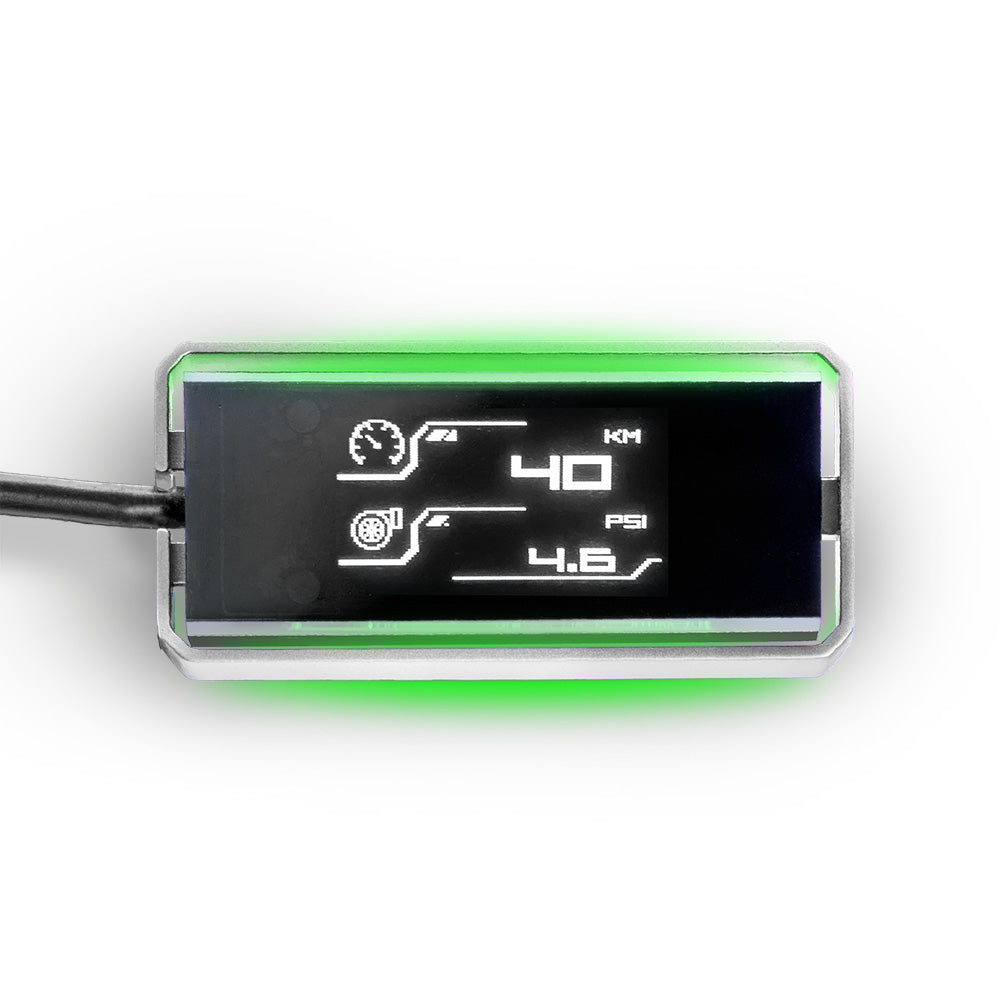

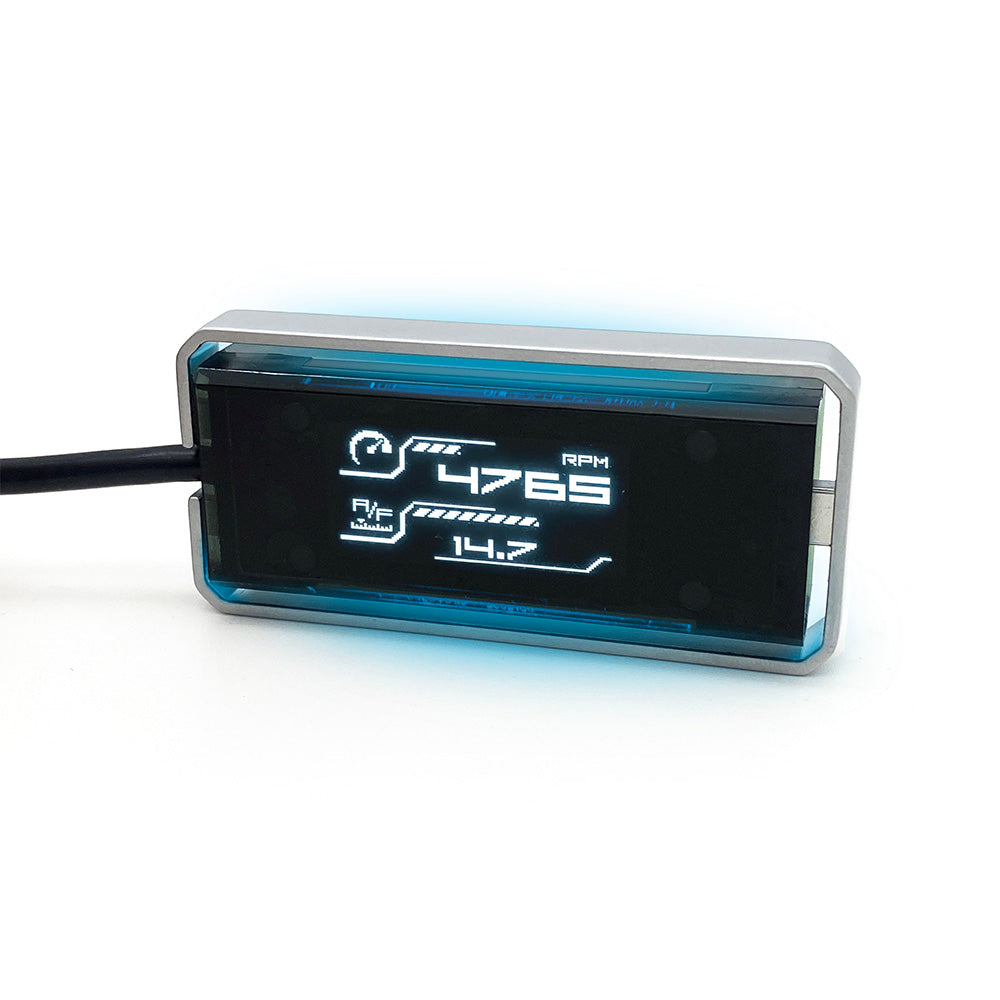

• Dual Information Display Option: Display two sets of engine data simultaneously.
• 10-in-1 Functionality: Monitor up to 10 engine parameters (displayable values depend on ECU sensors).
• Fully Adjustable Warning System: Set up to 8 customizable warning alerts for different engine parameters.

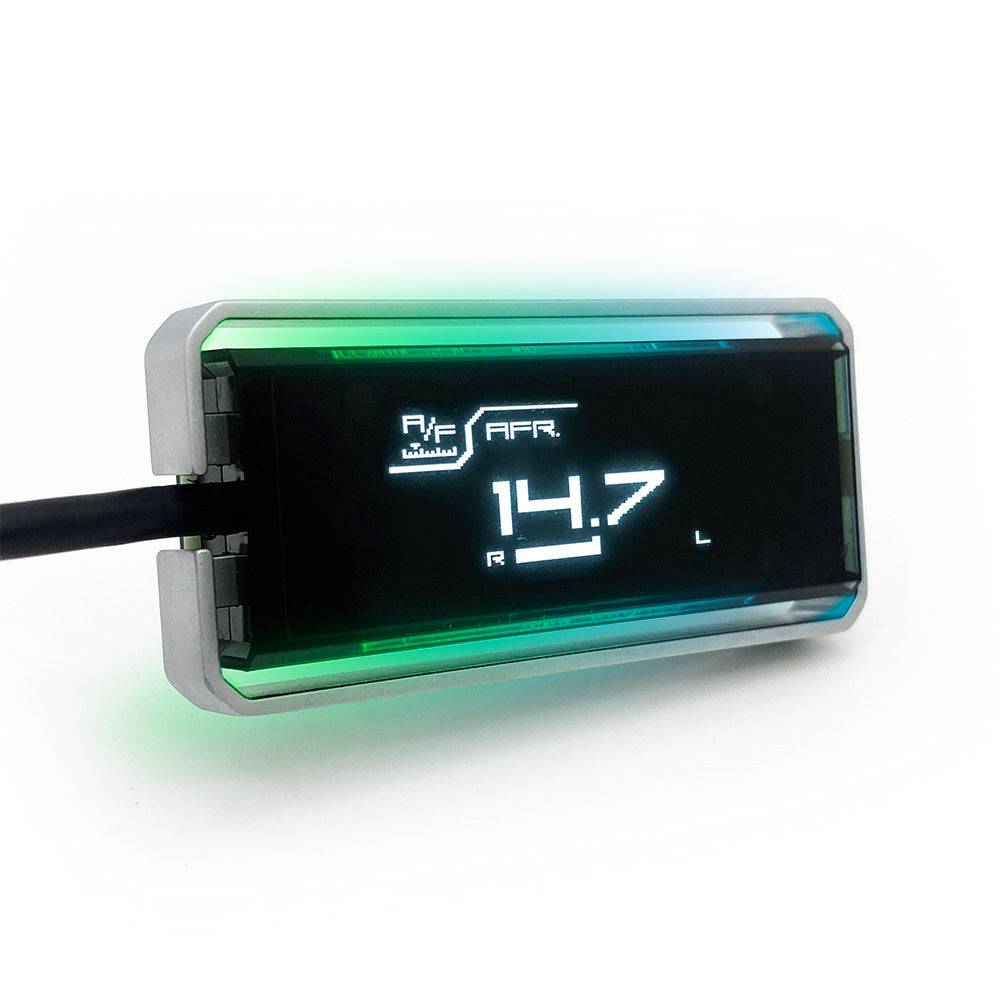

• Ambient Lighting: Seven color options with four brightness levels, customizable to suit your preferences.
• Power Down Memory: Settings are automatically saved, even after powering off the device.
• Easy Installation: Plug-and-play setup via the OBD2 port.

Important Note:

The D-METER-2 is a display unit, and the information it shows is sourced directly from the vehicle’s ECU and engine sensors. If the vehicle lacks sensors for certain functions, the D-METER-2 will not display data for those parameters. Functionality will vary depending on the vehicle’s ECU and sensor setup, which may differ between manufacturers and vehicle models.

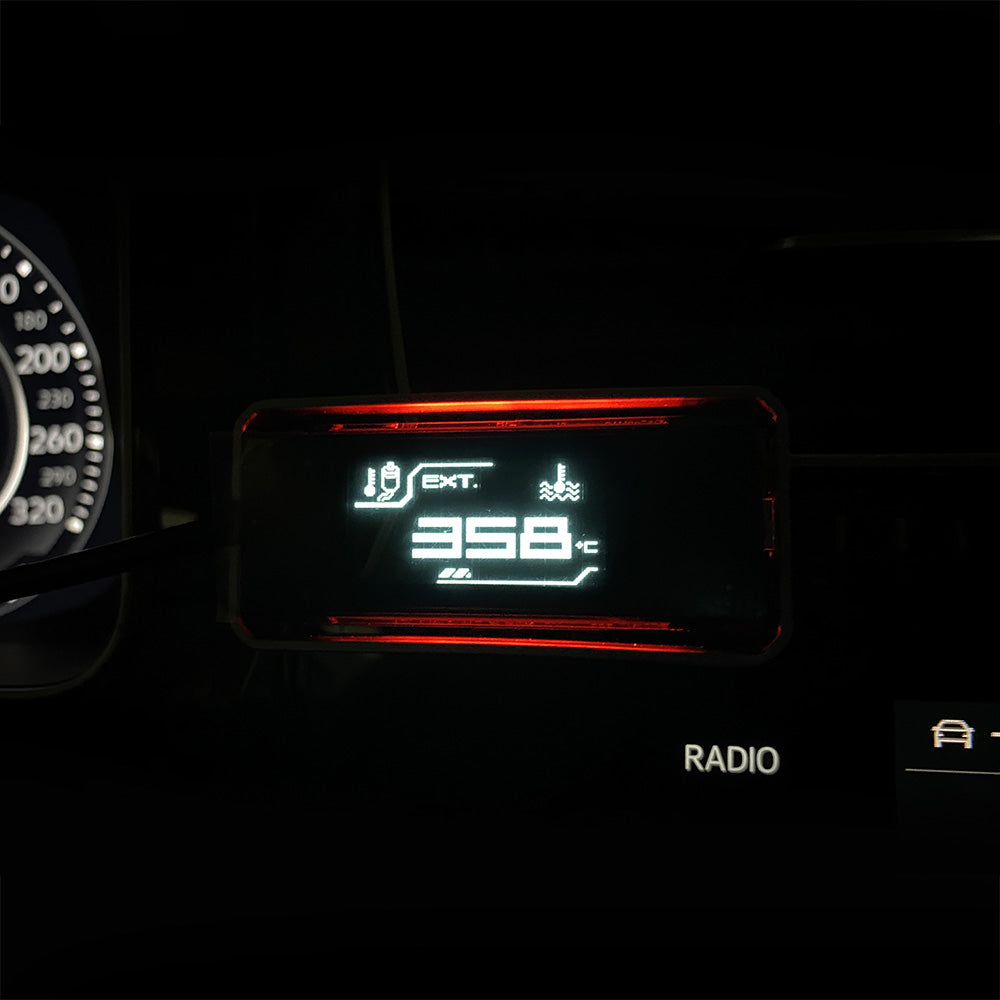

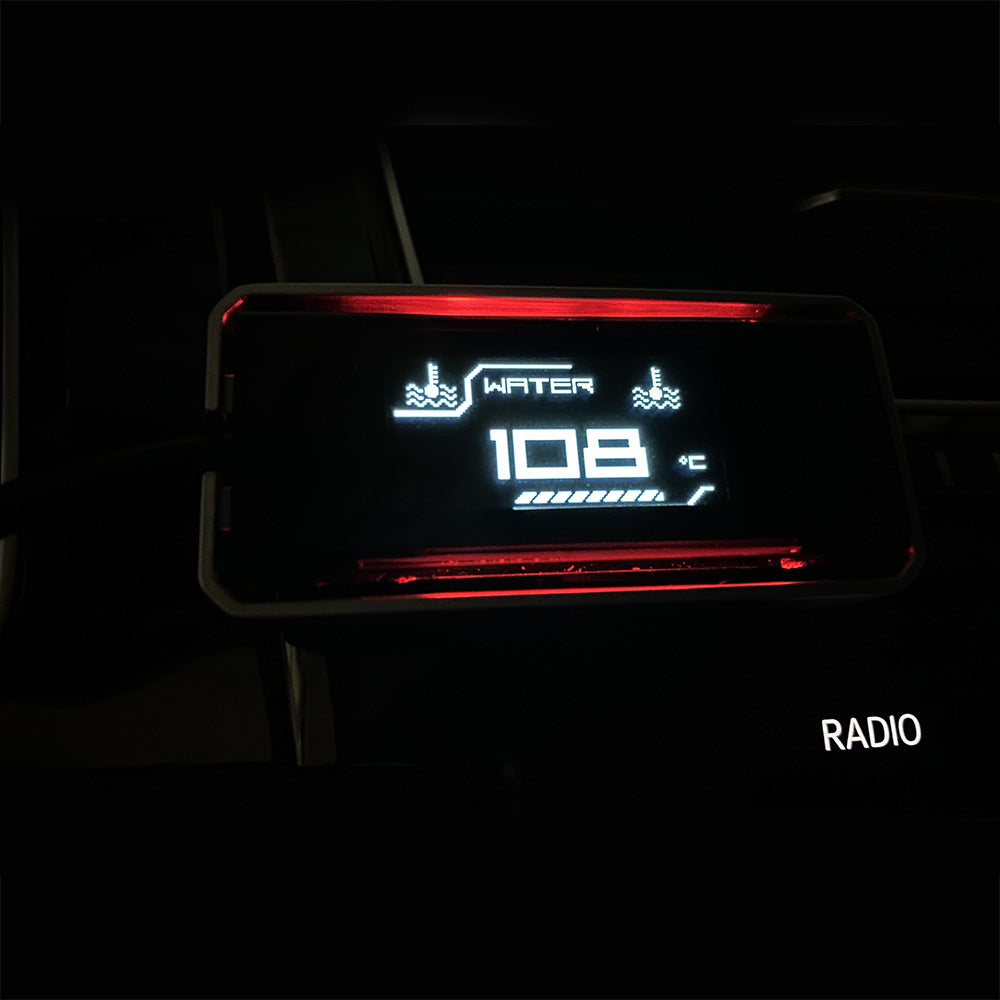

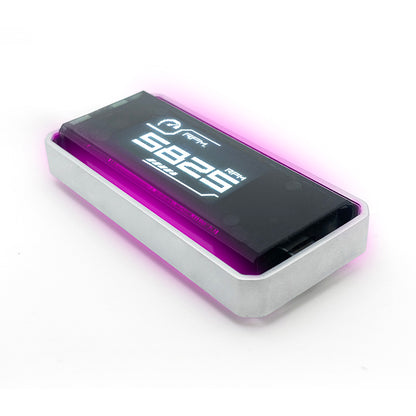

Unlike conventional products that use LCD screens, the D-Meter2 features an OLED display, offering a wider viewing angle and superior clarity. It ensures excellent visibility at night and remains unaffected by glare or external lighting conditions.

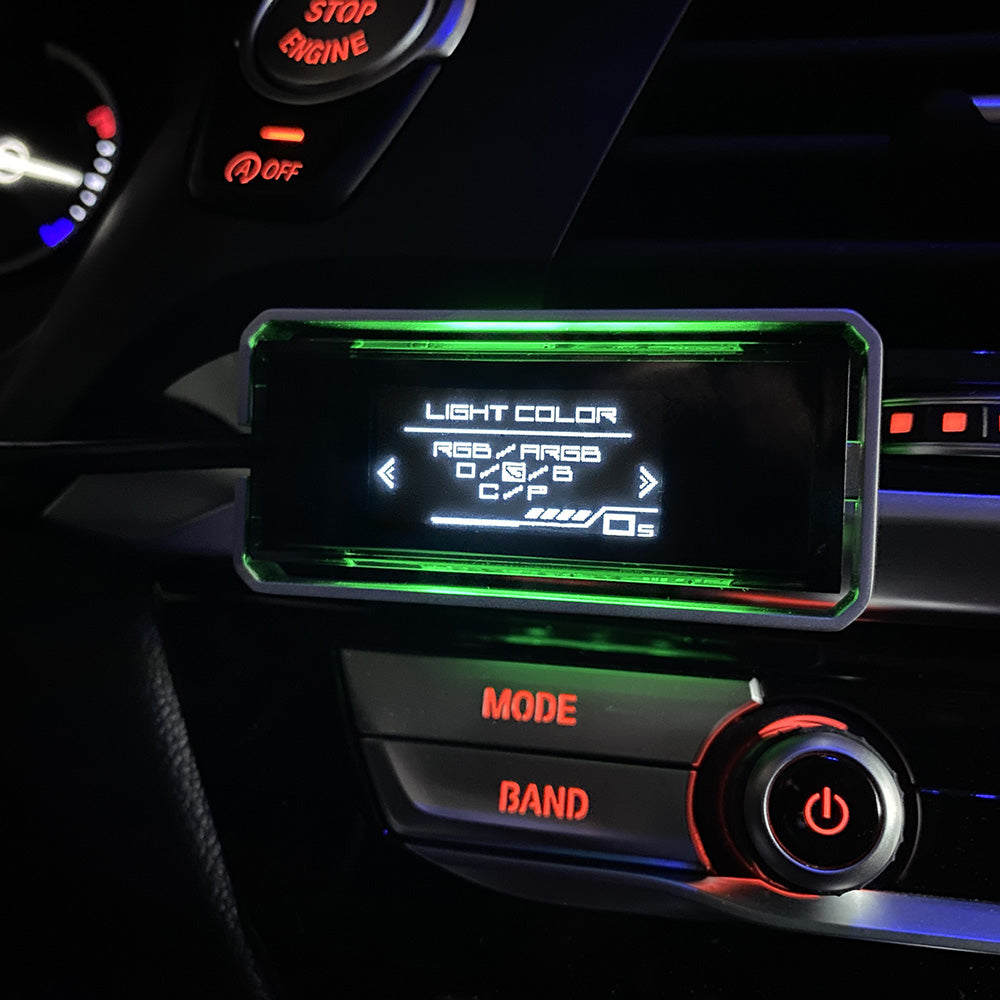

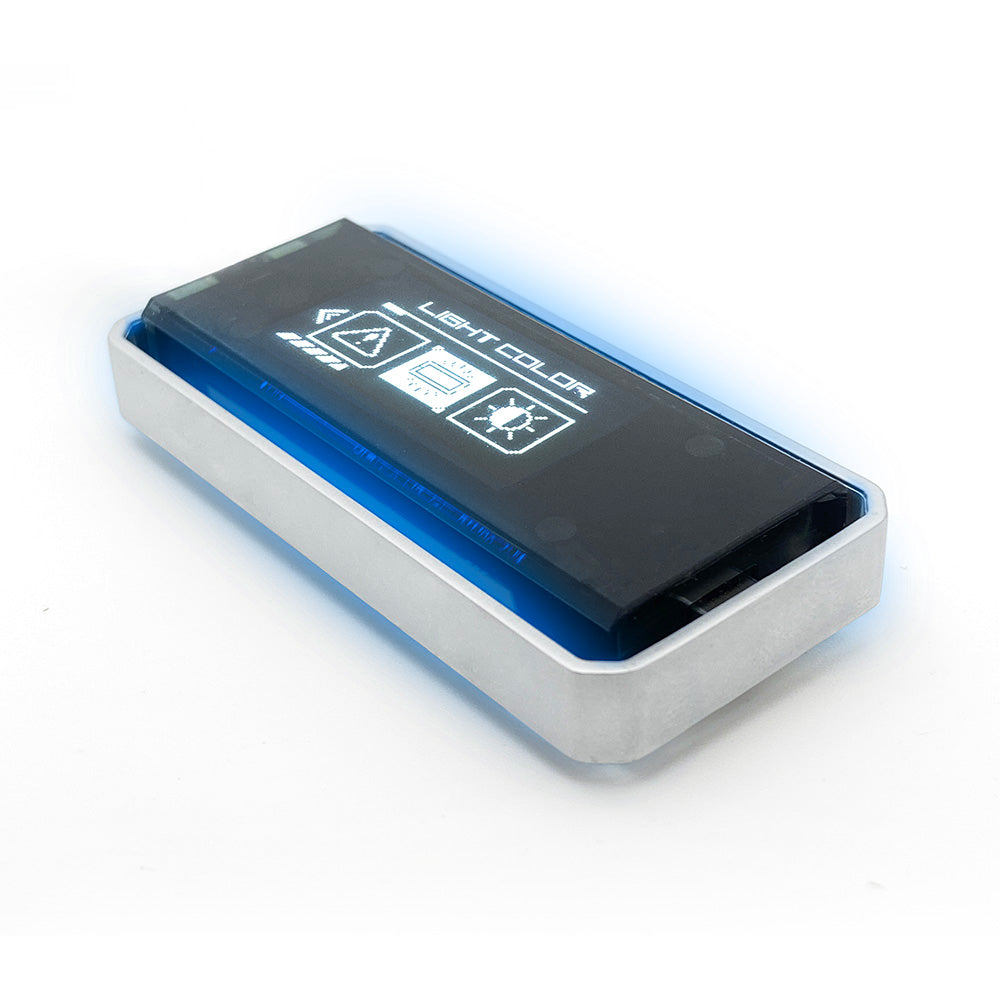

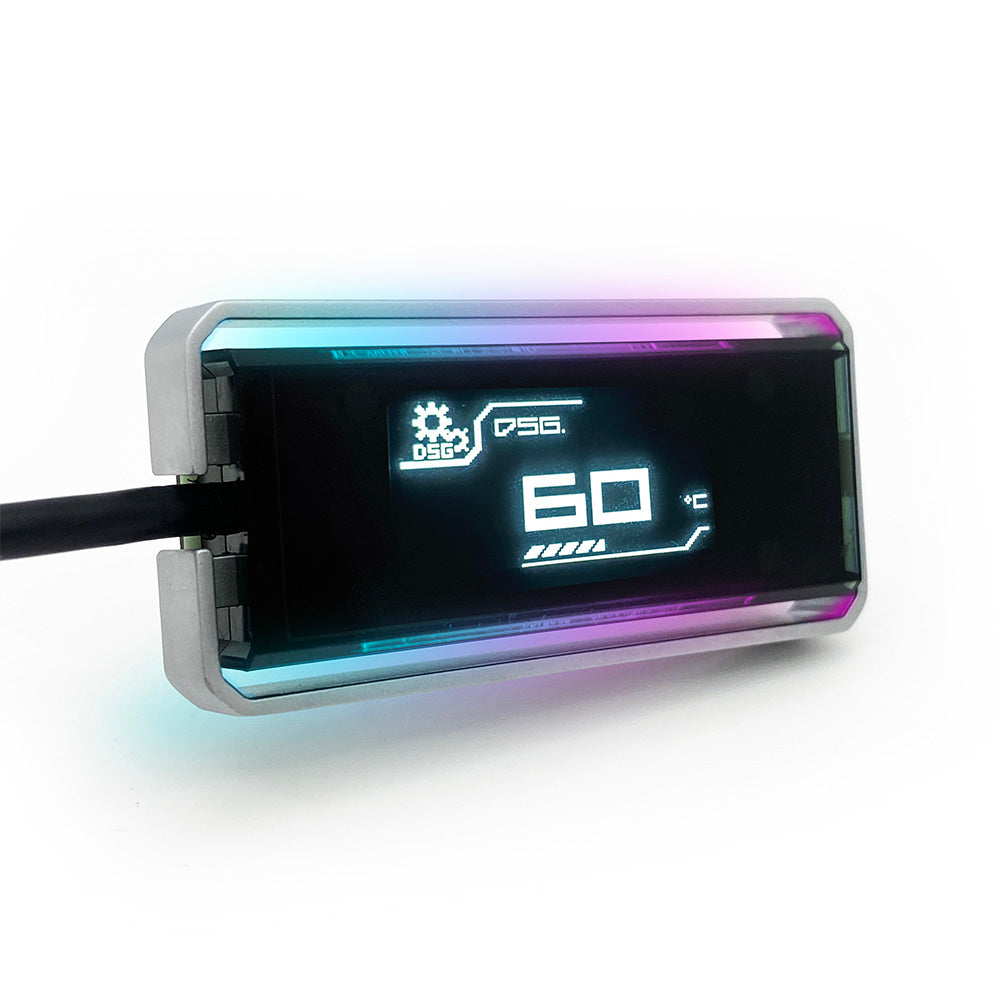

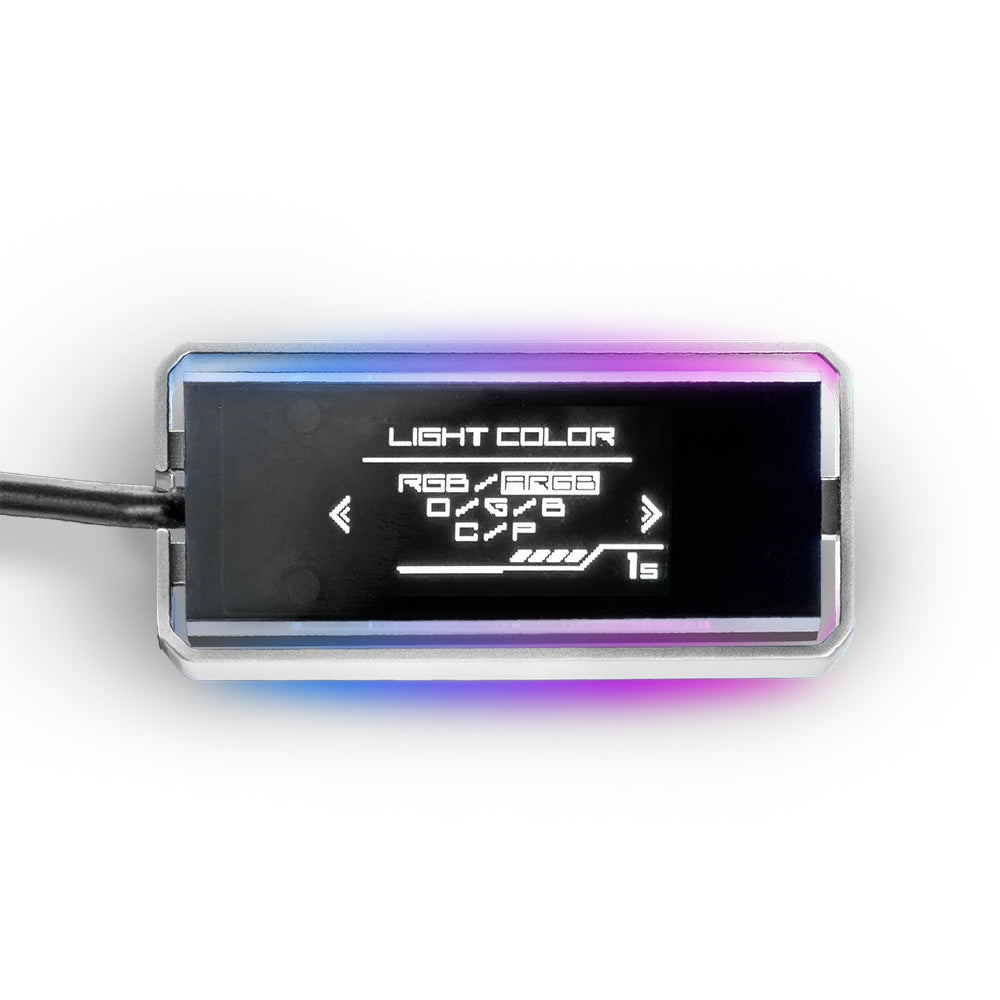

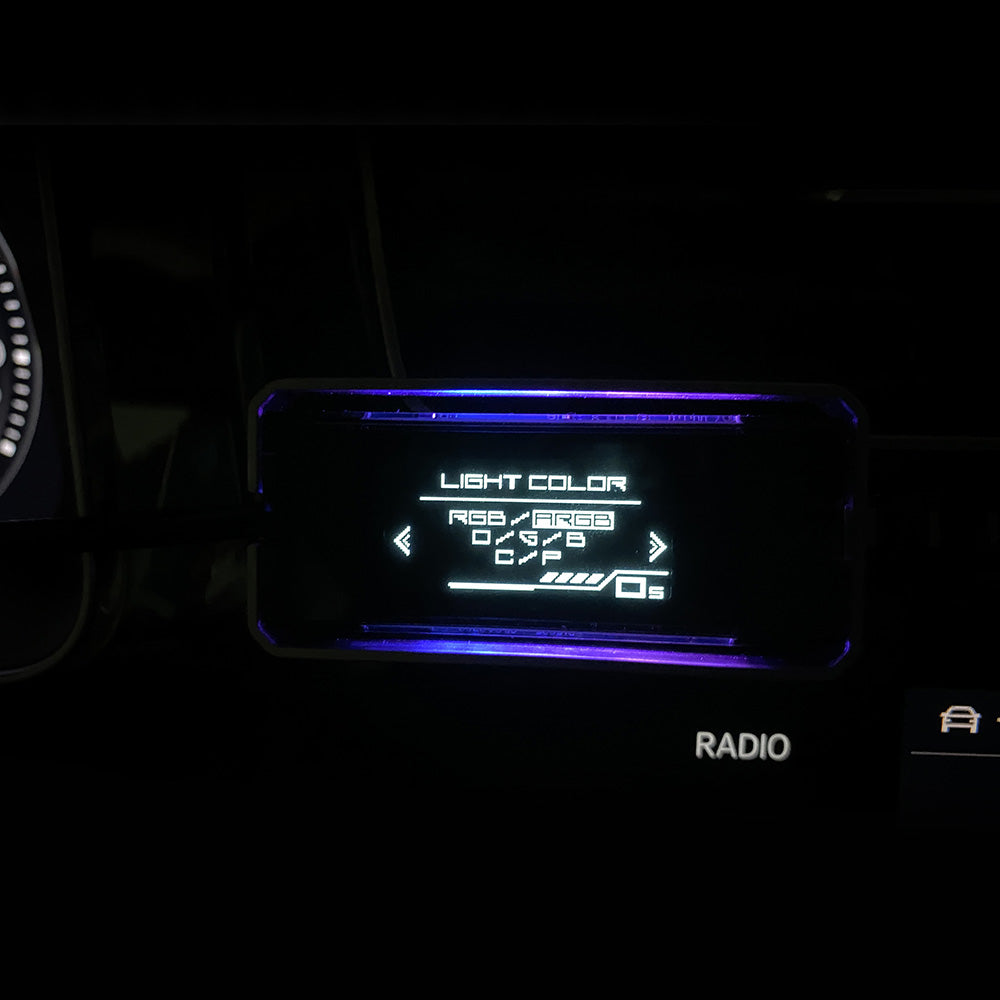

The D-Meter2’s unique seven-color LED ambient backlight enhances the in-car atmosphere and can be adjusted across four brightness levels to match the vehicle’s interior.

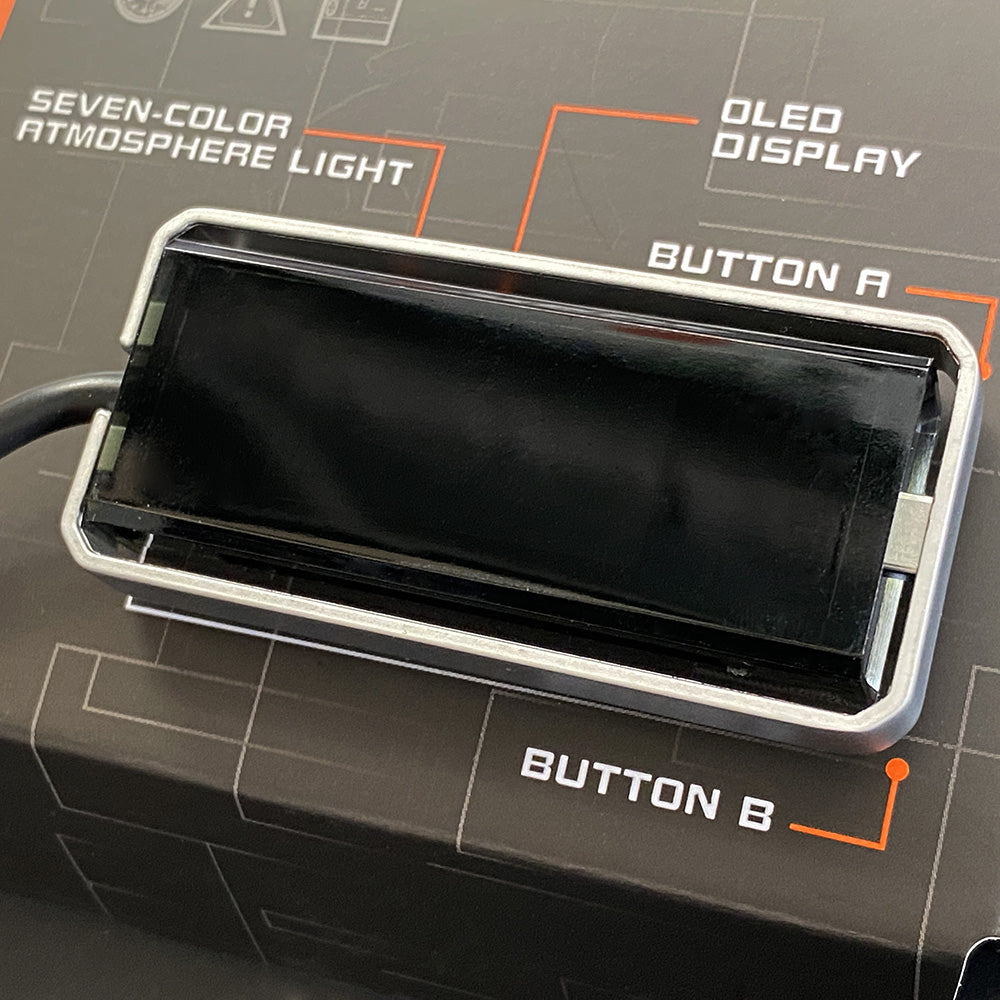

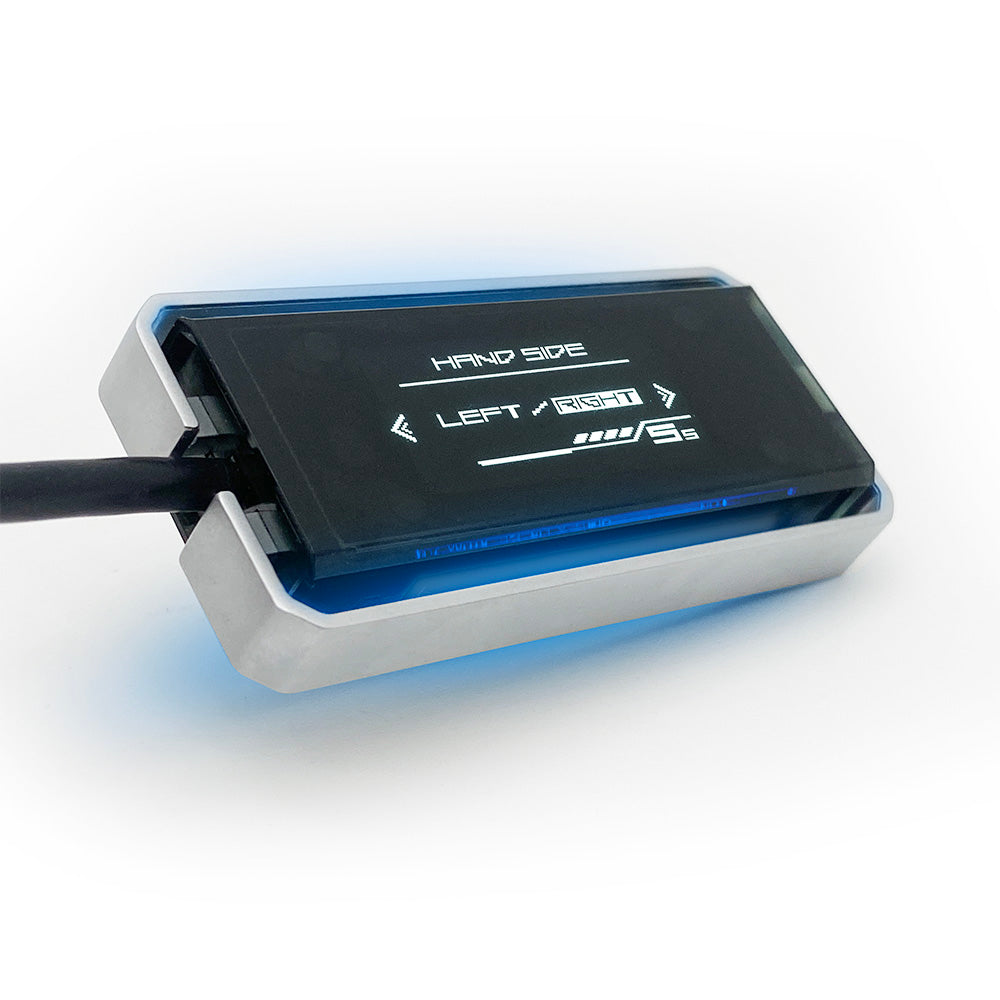

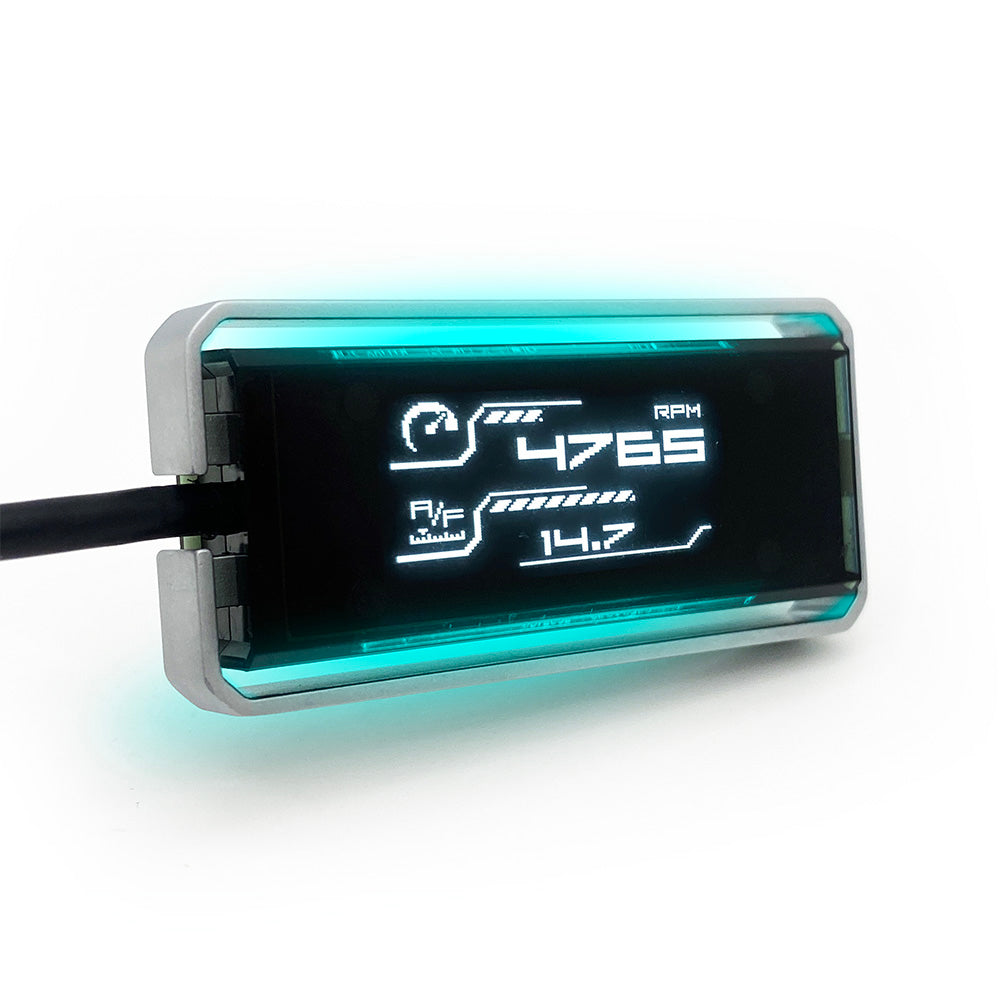

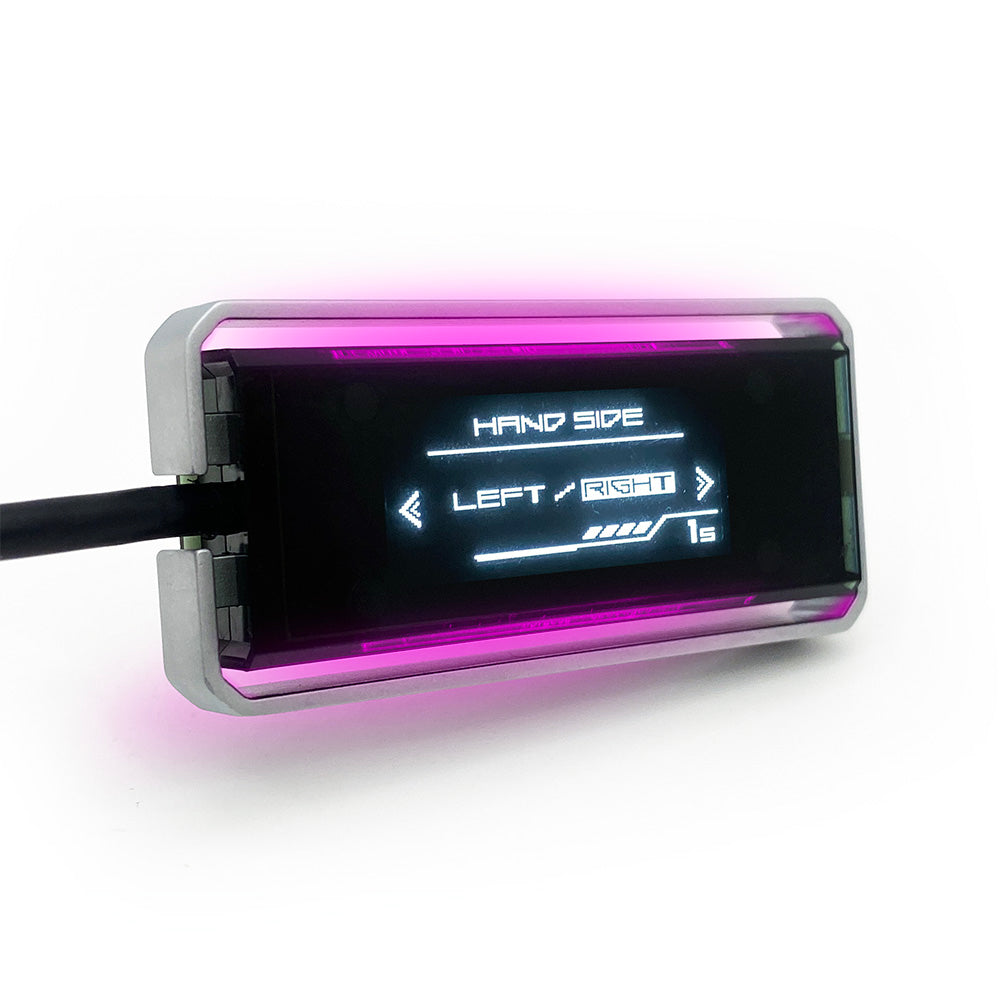

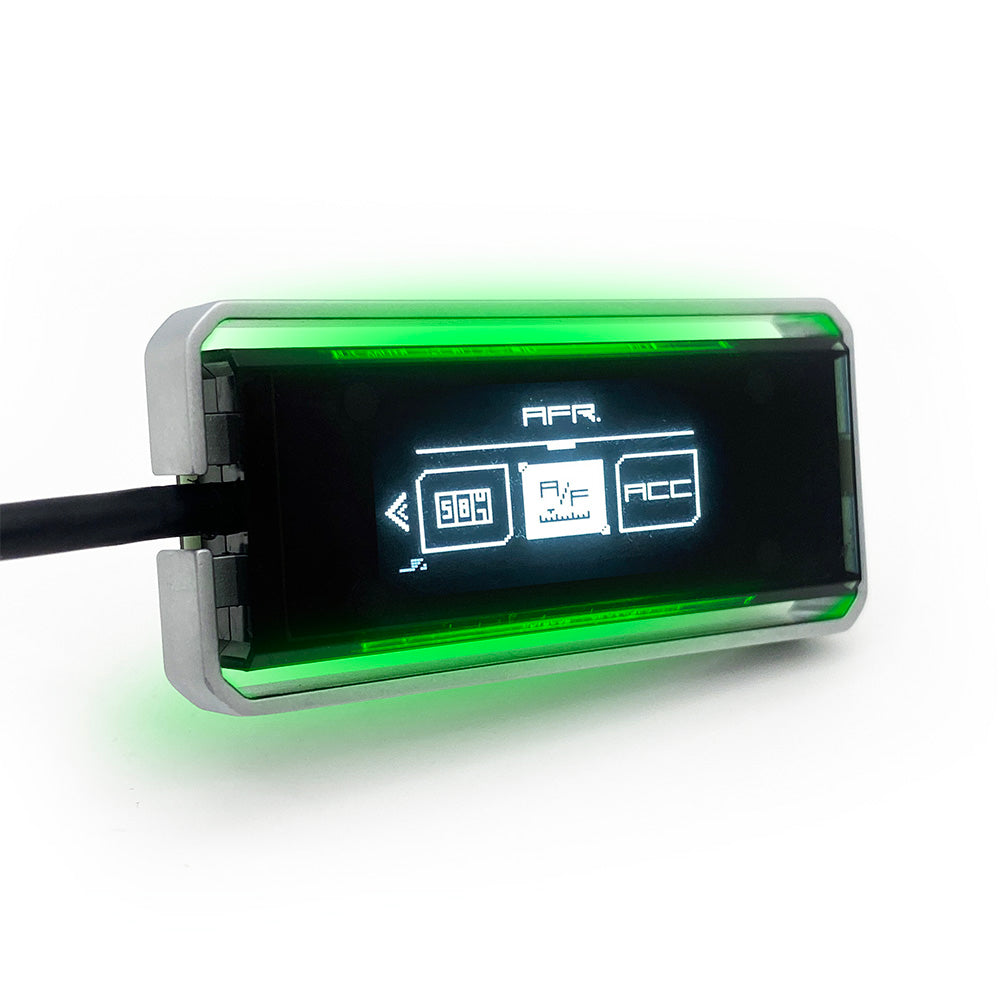

Hidden-button design provides a simple and intuitive user experience, supporting both single and dual-screen display modes. Additionally, it allows switching between left-hand and right-hand drive modes, catering to different cockpit layouts and wiring preferences.

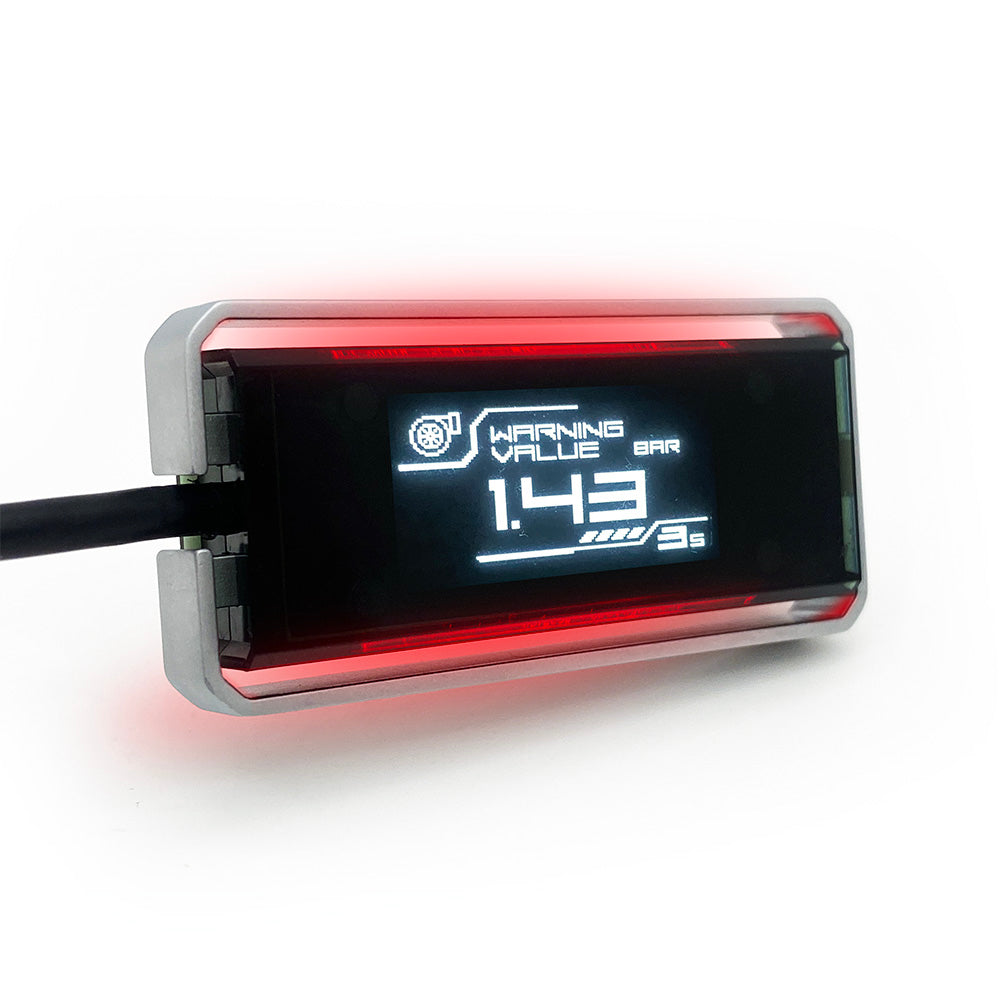

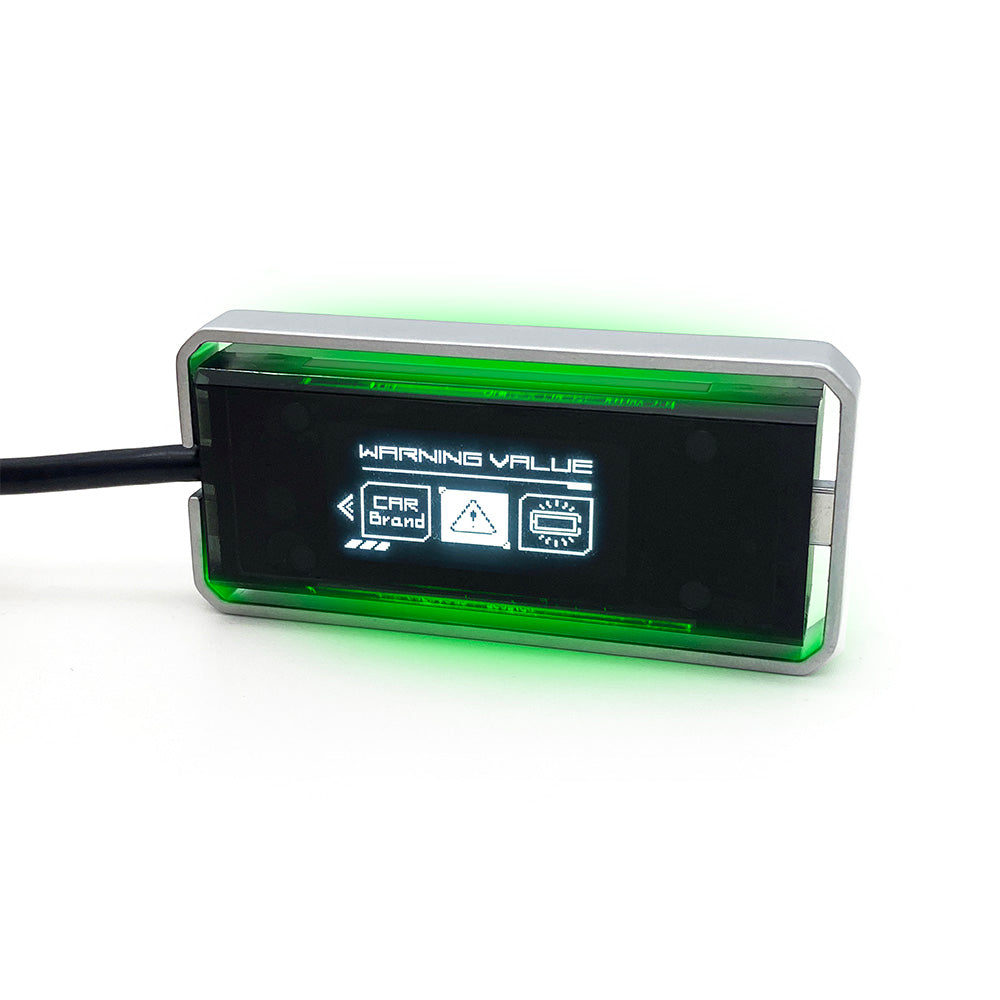

Customizable Alerts for Enhanced Vehicle Safety

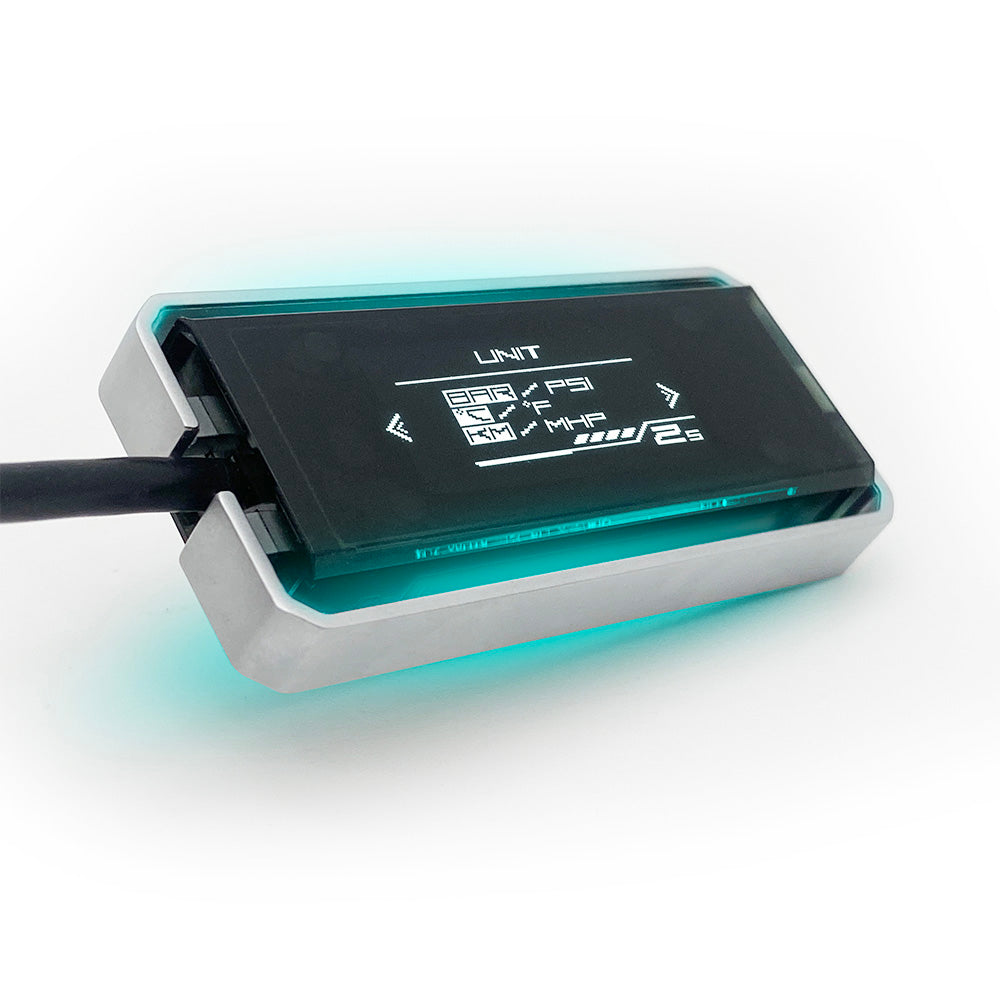

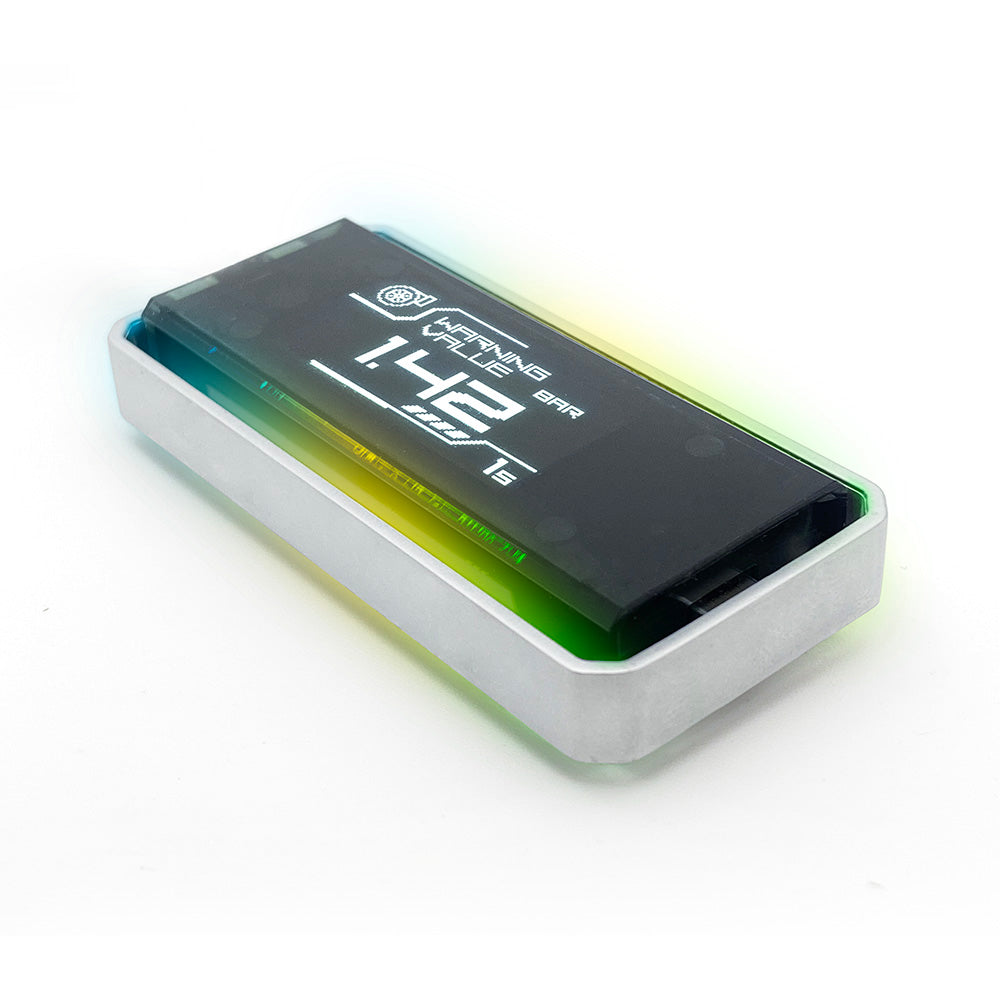

The D-Meter2 OBDII multifunction display is designed to accommodate a variety of driving preferences and requirements. It offers unit customization and supports up to nine user-defined alert settings. When any monitored parameter exceeds its preset threshold, the system activates a flashing red light and audible warning to promptly alert the driver.

Additionally, a built-in power-off memory function ensures that all configurations are automatically saved, even after the device is powered down.

Function

The D-Meter2 OBDII multifunction display utilizes the OBDII standard CAN BUS communication protocol. To ensure optimal performance, the vehicle must support the corresponding communication protocol.

Displayed data is based on the information provided by the vehicle's ECU. Since ECU designs vary across different models, available data may differ. To avoid compatibility issues, please verify your vehicle’s compatibility before installation.

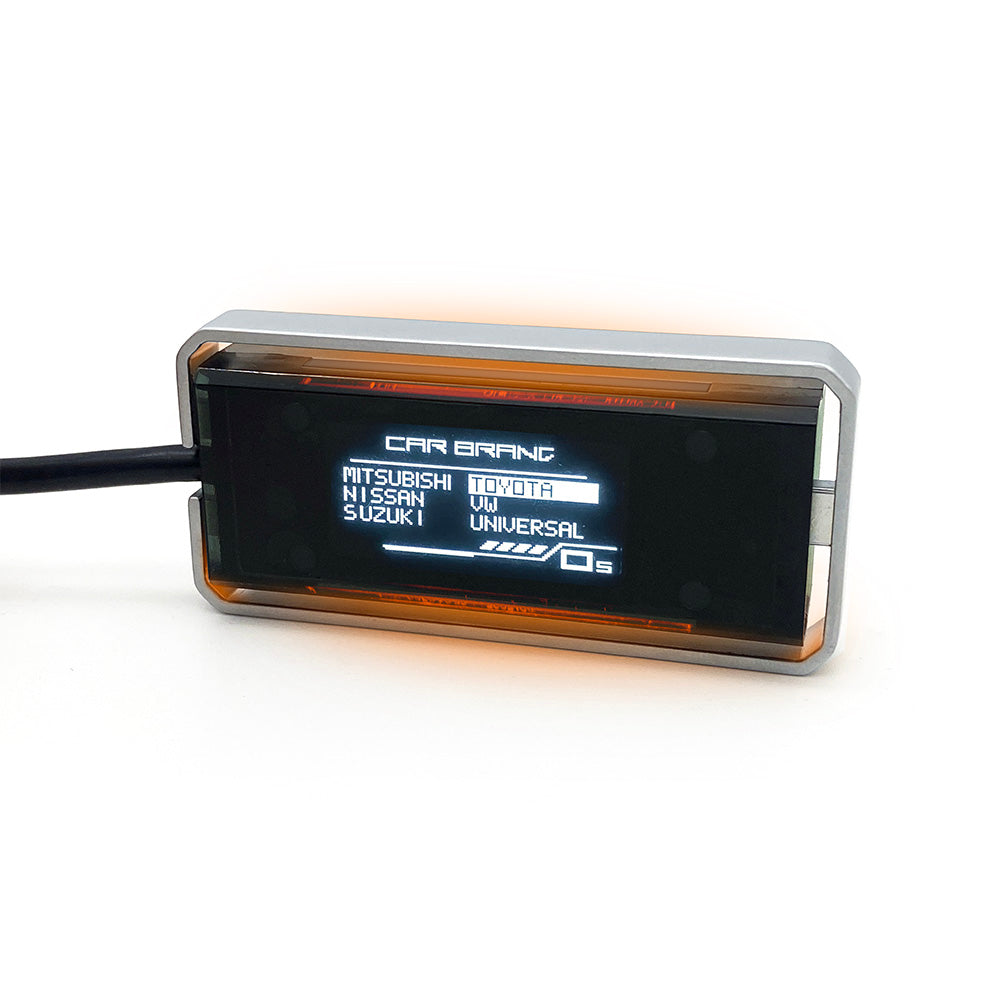

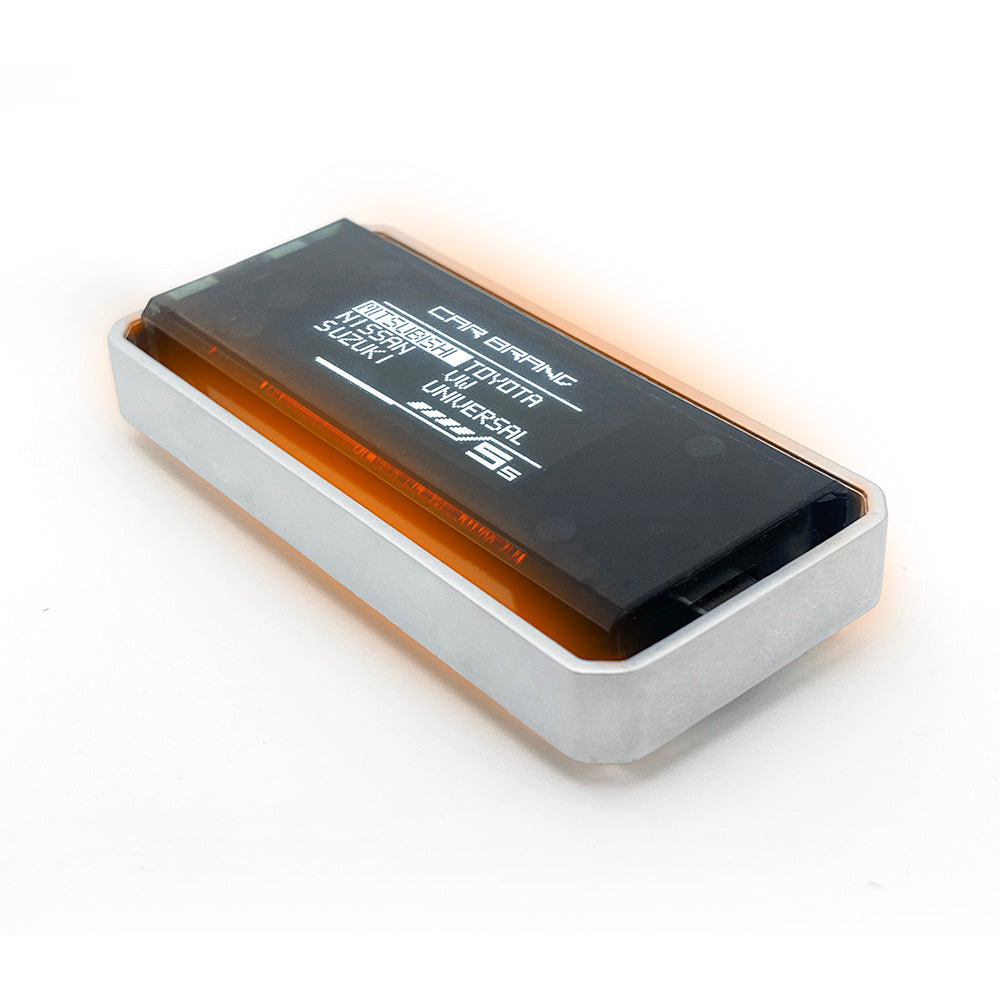

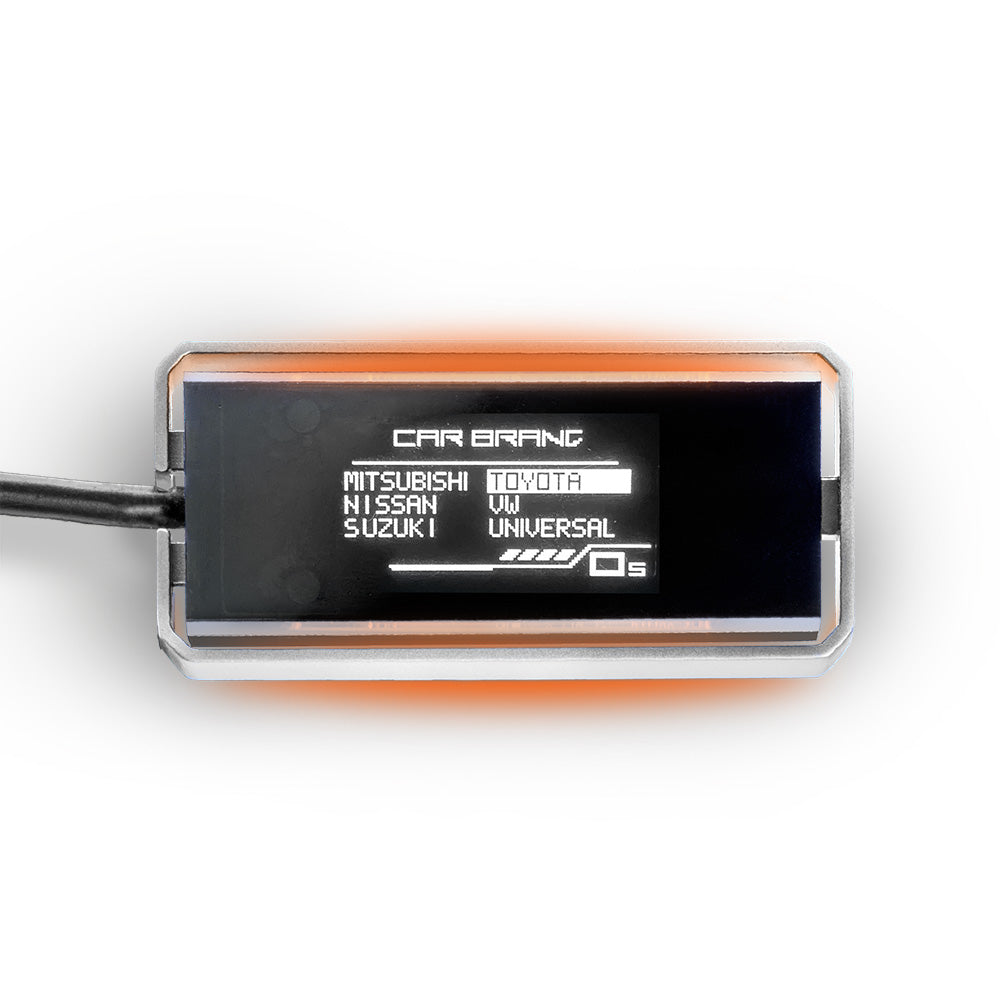

Supported European, Japanese, American, and emerging brands, covering various vehicle models:

- European brands: Volkswagen, Audi, Porsche, Skoda, BMW, Benz, MINI
- Japanese brands: Toyota, Lexus, Nissan, Suzuki, Honda, Mazda
- American brands: Ford, GM
- Emerging brands: GWM, Lynk

Since engine oil temperature and transmission oil temperature are not part of the OBD-PID standard and some vehicles lack built-in factory sensors, these data points may not be available on all models.

The following vehicle models have been confirmed to support these displays:

BMW: All G-generation models support both engine oil temp and transmission oil temp.

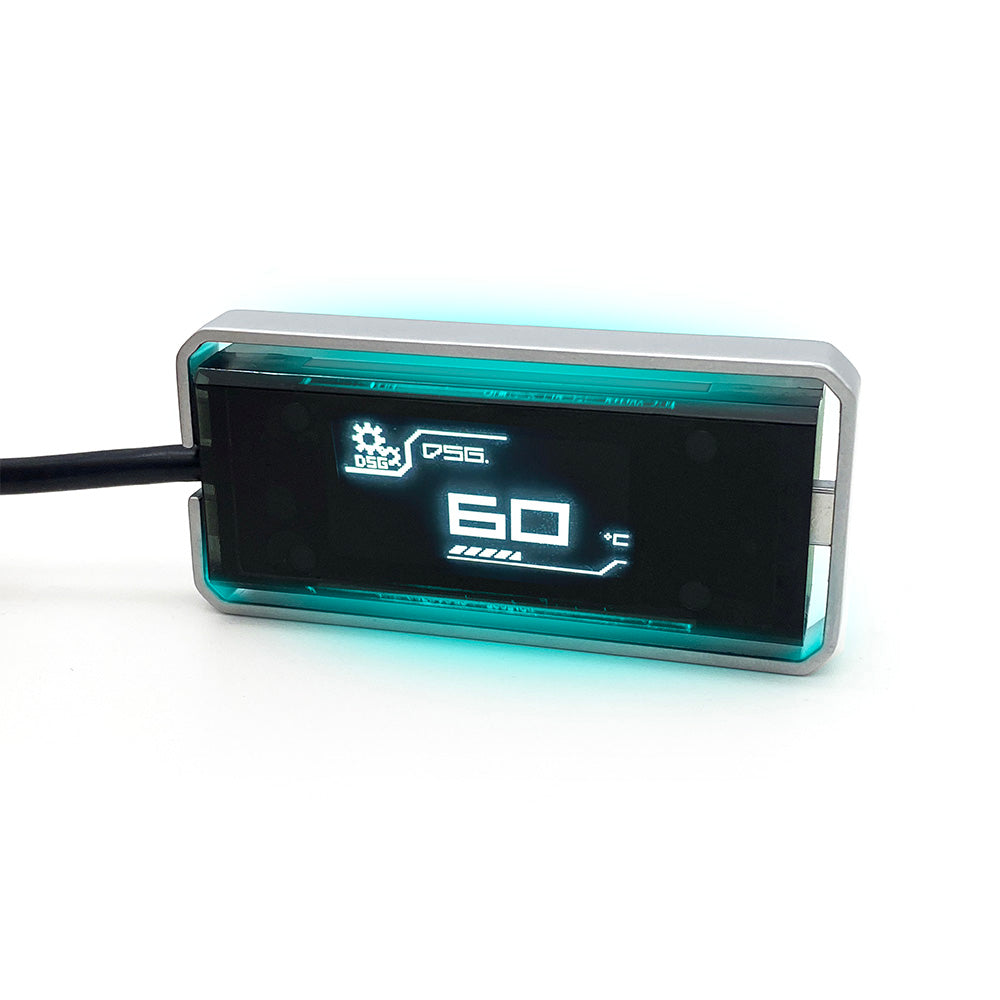

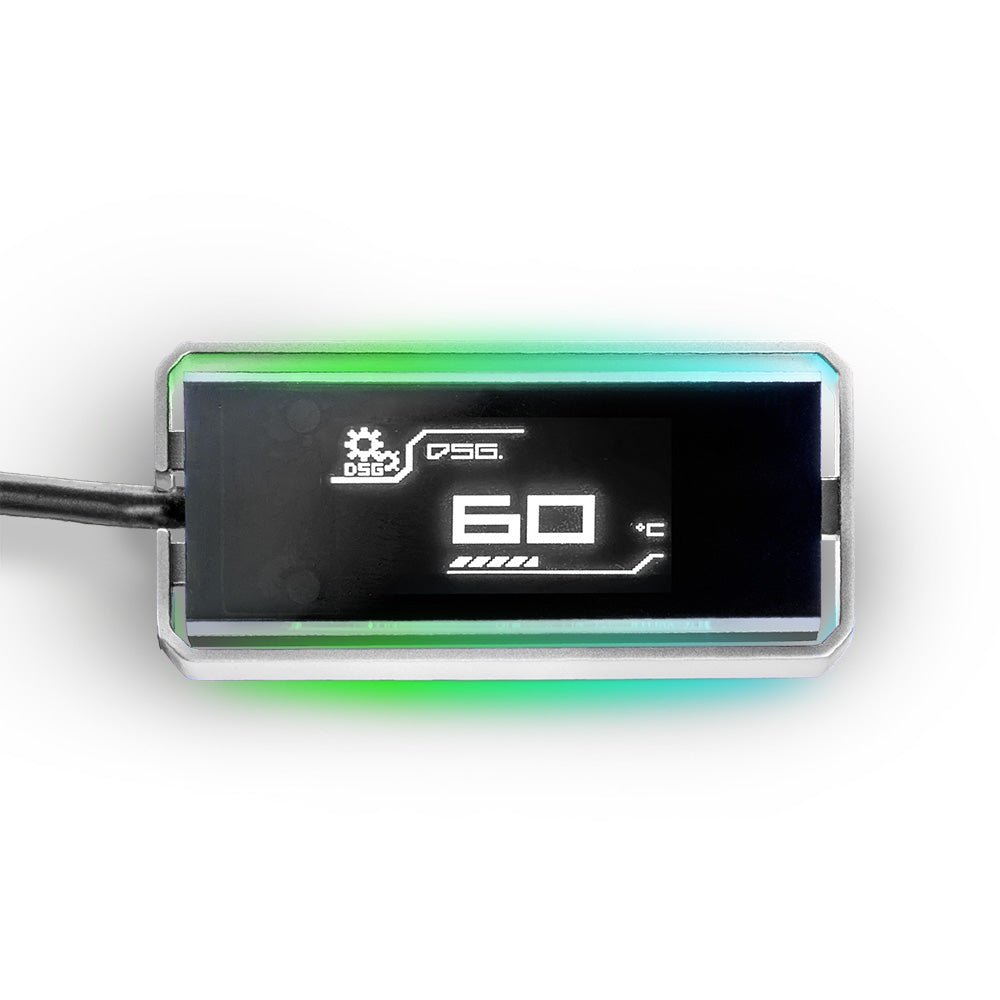

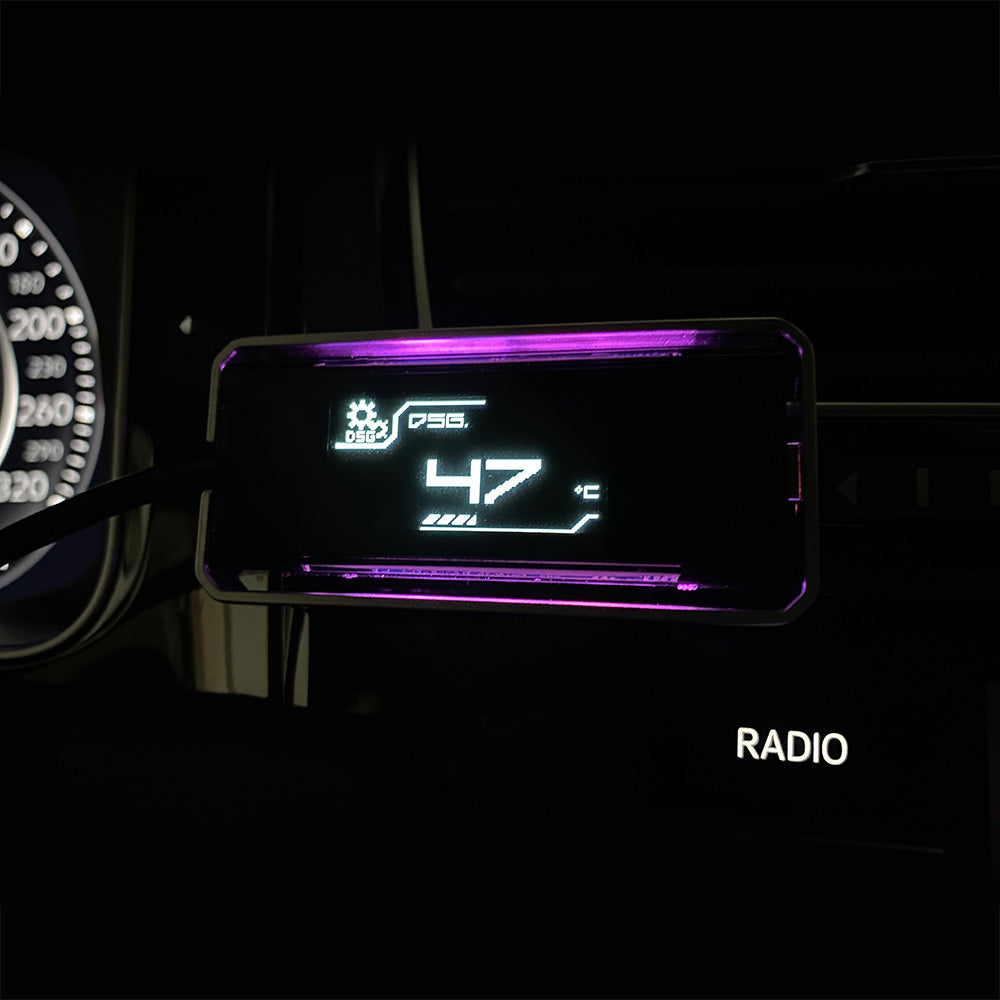

VAG (Volkswagen, Audi, Skoda, Porsche): 2014+ models with DSG dual-clutch transmission support transmission oil temp display.
FORD: Focus MK4, Kuga MK3.5 support both engine oil temp and transmission oil temp.
SUZUKI: Jimny JB74 supports transmission oil temp.
NISSAN: Kicks supports both engine oil temp and transmission oil temp.
TOYOTA: Hilux, Sienta, Altis, Land Cruiser support transmission oil temp.
HONDA: Civic 9 supports transmission oil temp.
MINI: R56 supports transmission oil temp.
MAZDA: CX-5 supports transmission oil temp.

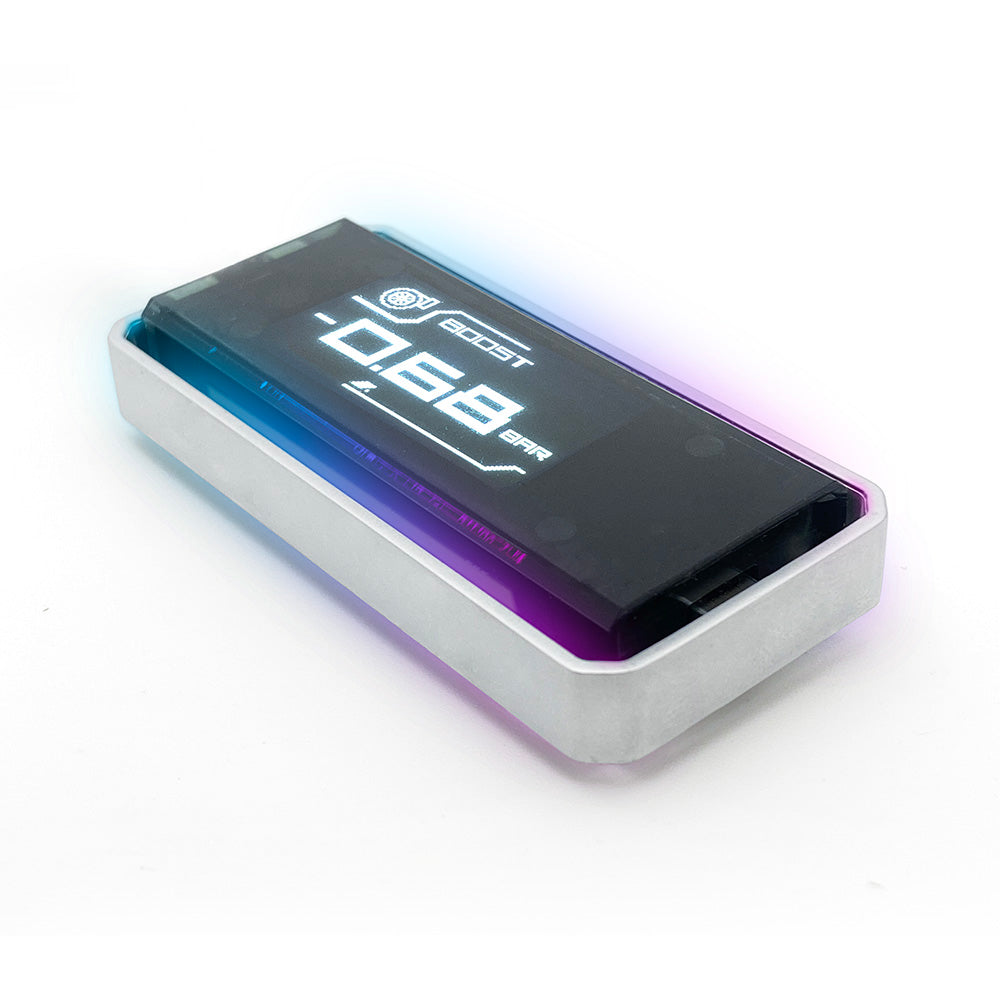

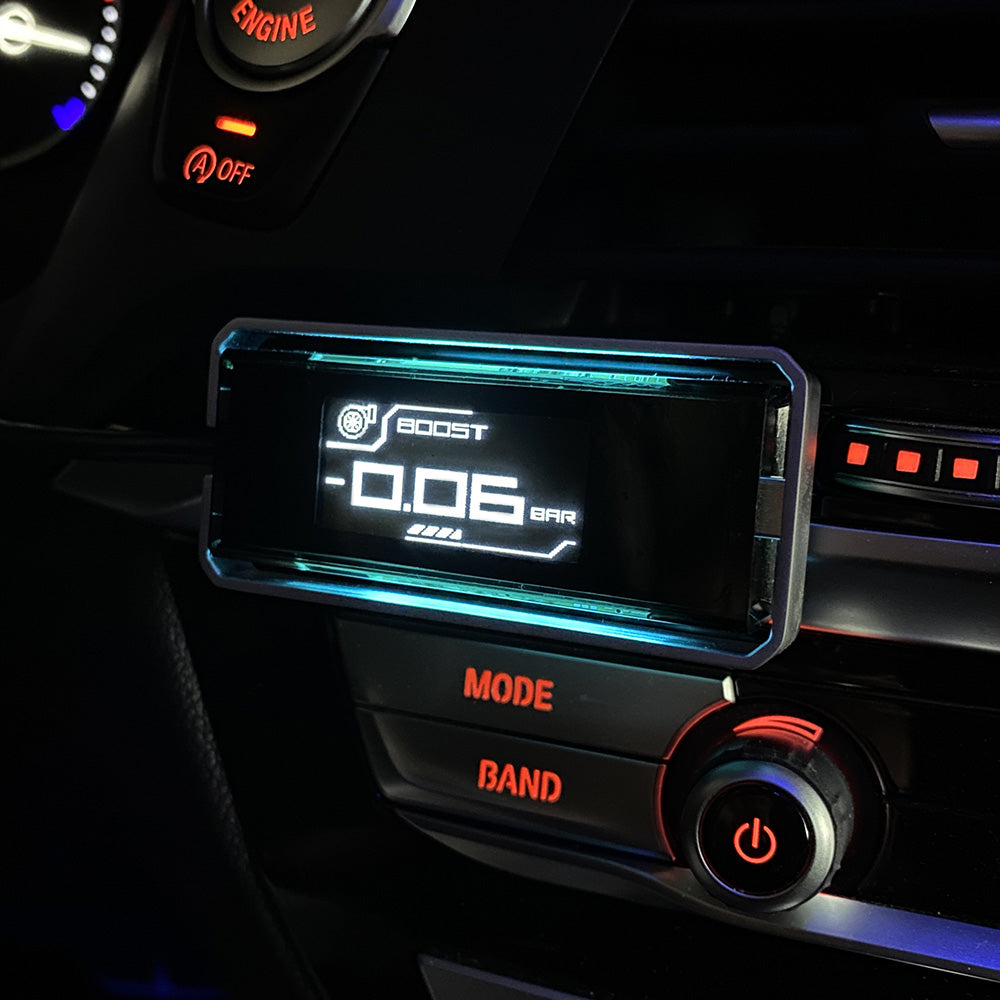

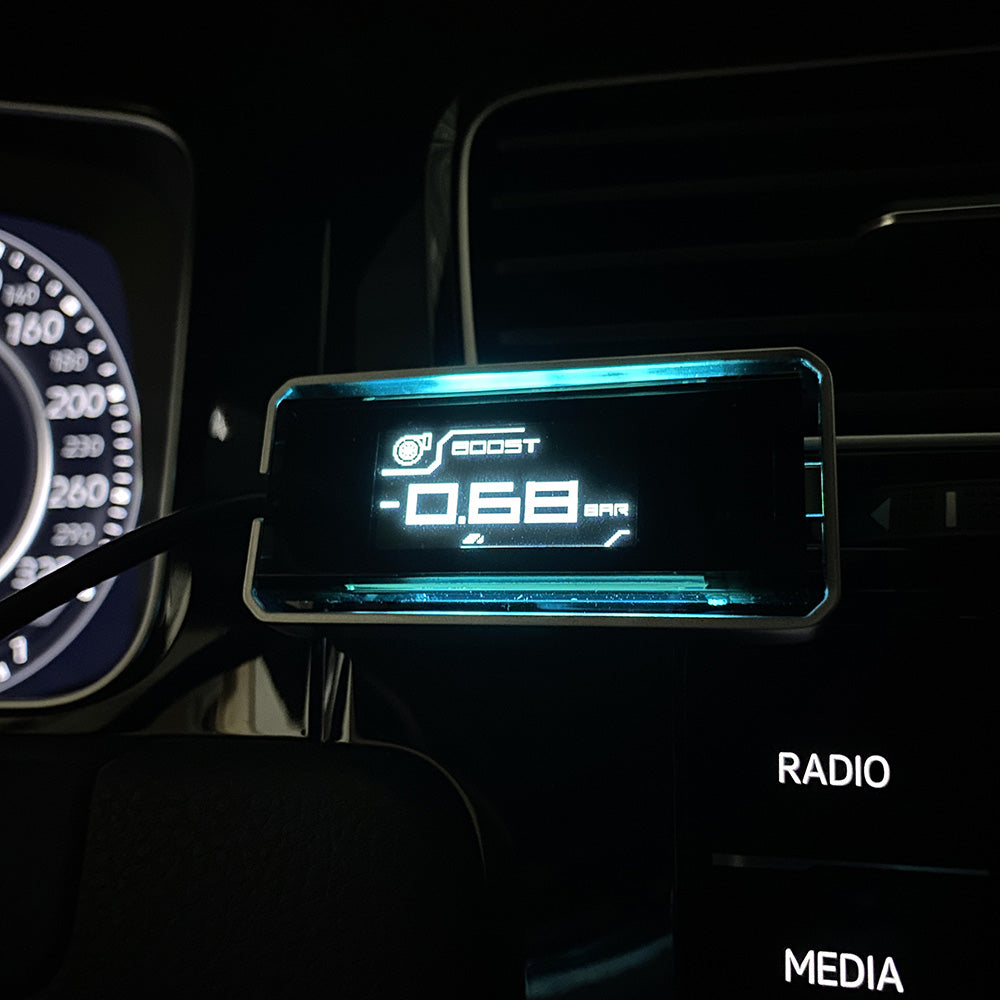

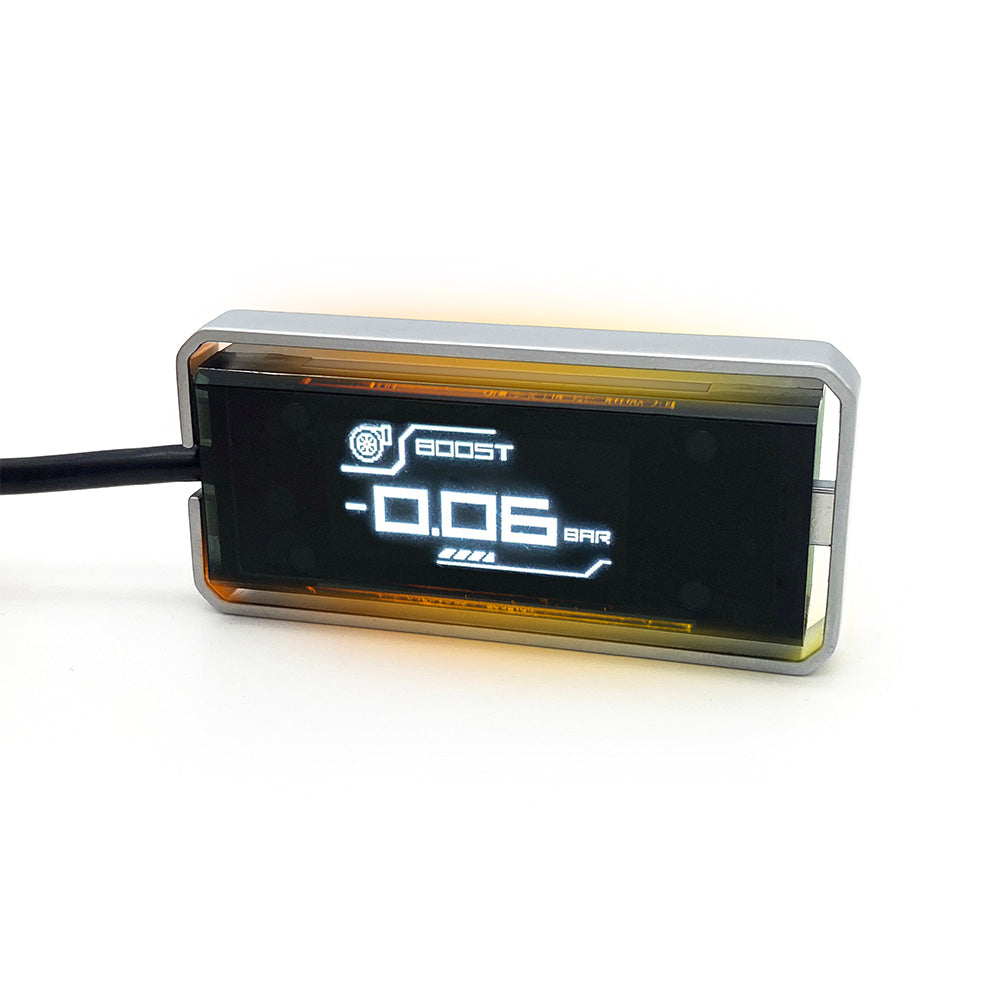

Most vehicles can display turbo pressure (intake manifold pressure) directly using standard channel CH.1, with a measurement range of -1.0 bar to +1.55 bar, making it compatible with most stock and modified turbocharged vehicles.

For certain high-boost vehicles, the D-METER 2 offers a dedicated turbo channel, capable of mapping from 1 atmosphere (0 bar) to over 2.0 bar, supporting the following models:

BMW: B48, B58 high-performance versions
TOYOTA: Hilux, Granvia 2.8L diesel engine (1GD-FTV)
VAG (Volkswagen, Audi, Skoda, Porsche): TDI models, EA888 GEN3, EA888 EVO4
